BF100 Series

Manufacturer: GCT

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS 6W, 2MM PITCH SOCKET, DIL, SMT, VERT, W/PEG, GF, T+R+F

Part	Contact Type	Current Rating (Amps)	Contact Finish - Post	Insulation Color	Connector Type	Contact Finish - Mating	Termination	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Row Spacing - Mating	Row Spacing - Mating	Features	Number of Positions	Number of Positions Loaded	Material Flammability Rating	Fastening Type	Number of Rows [custom]	Mounting Type	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Insulation Material	Contact Material	Contact Shape	Insulation Height	Insulation Height
GCT BF100-06-A-D-1-0640-L-C	Female Socket	2 A	Gold	Black	Receptacle Bottom or Top Entry	Gold	Solder	0.181 in	4.6 mm	Flash	0.079 "	2 mm	2 mm	0.079 in	Board Guide Pick and Place	6	All	UL94 V-0	Push-Pull	2	Surface Mount	250 VAC	-40 C	105 ░C

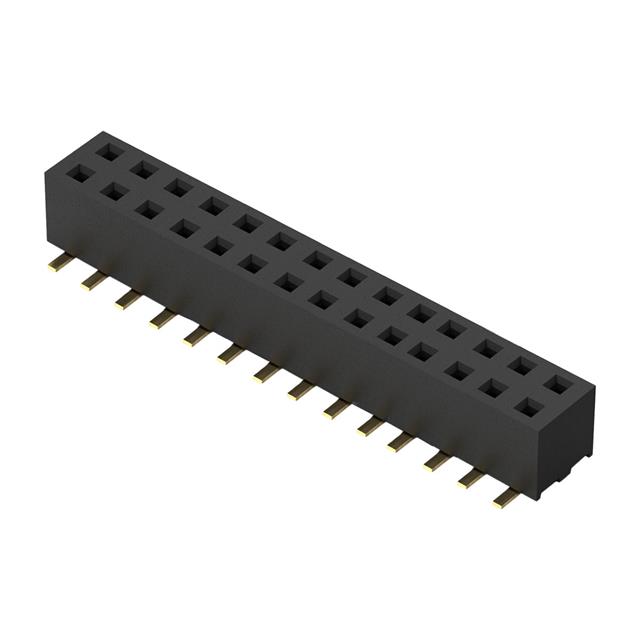

GCT BF100-28-A-C-0-0625-N-D	Female Socket	2 A	Gold	Black	Receptacle Bottom or Top Entry	Gold	Solder			Flash	0.079 "	2 mm	2 mm	0.079 in	Pick and Place	28	All	UL94 V-0	Push-Pull	2	Surface Mount	250 VAC	-40 C	105 ░C	Flash	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Square	4.3 mm	0.169 "
GCT BF100-14-A-D-1-0640-L-C	Female Socket	2 A	Gold	Black	Receptacle Bottom or Top Entry	Gold	Solder	0.181 in	4.6 mm	Flash	0.079 "	2 mm	2 mm	0.079 in	Board Guide Pick and Place	14	All	UL94 V-0	Push-Pull	2	Surface Mount	250 VAC	-40 C	105 ░C
GCT BF100-06-A-D-0-0640-L-C	Female Socket	2 A	Gold	Black	Receptacle Bottom or Top Entry	Gold	Solder	0.181 in	4.6 mm	Flash	0.079 "	2 mm	2 mm	0.079 in	Pick and Place	6	All	UL94 V-0	Push-Pull	2	Surface Mount	250 VAC	-40 C	105 ░C

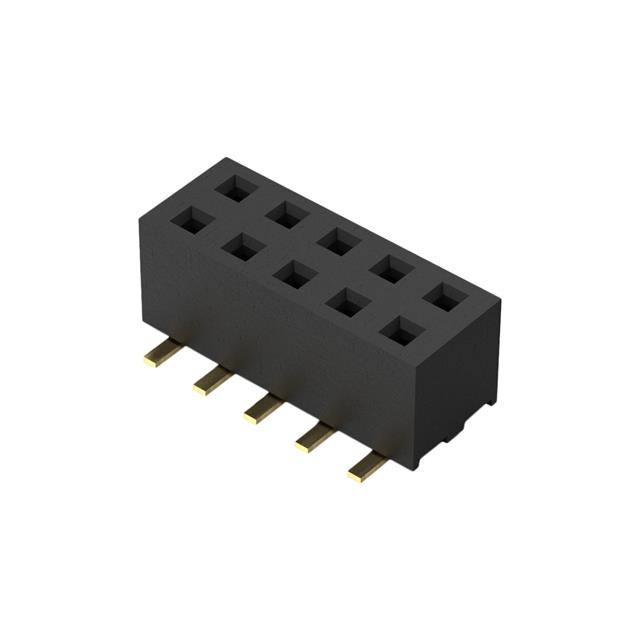

GCT BF100-10-A-C-0-0625-L-C	Female Socket	2 A	Gold	Black	Receptacle Bottom or Top Entry	Gold	Solder			Flash	0.079 "	2 mm	2 mm	0.079 in	Pick and Place	10	All	UL94 V-0	Push-Pull	2	Surface Mount	250 VAC	-40 C	105 ░C	Flash	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Square	4.3 mm	0.169 "

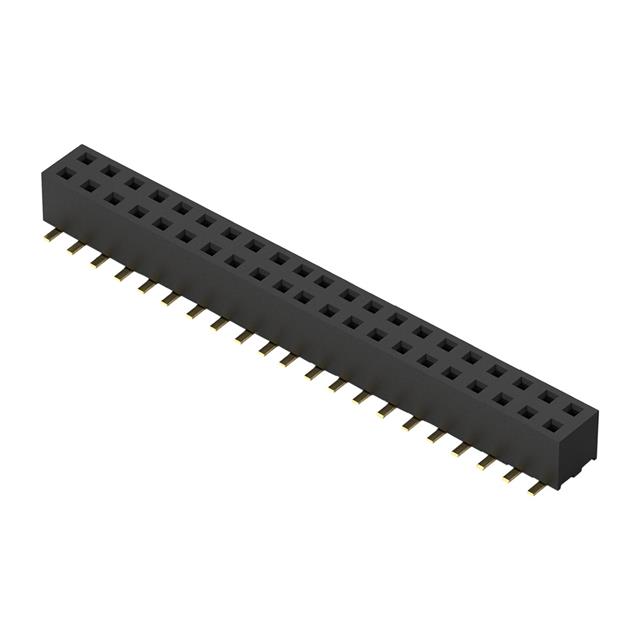

GCT BF100-42-A-C-0-0625-N-D	Female Socket	2 A	Gold	Black	Receptacle Bottom or Top Entry	Gold	Solder			Flash	0.079 "	2 mm	2 mm	0.079 in	Pick and Place	42	All	UL94 V-0	Push-Pull	2	Surface Mount	250 VAC	-40 C	105 ░C	Flash	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Square	4.3 mm	0.169 "
GCT BF100-26-A-C-0-0625-N-D	Female Socket	2 A	Gold	Black	Receptacle Bottom or Top Entry	Gold	Solder			Flash	0.079 "	2 mm	2 mm	0.079 in	Pick and Place	26	All	UL94 V-0	Push-Pull	2	Surface Mount	250 VAC	-40 C	105 ░C					4.3 mm	0.169 "
