SMCJ1.5 Series
Manufacturer: MCC (Micro Commercial Components)
Beta
⌘K

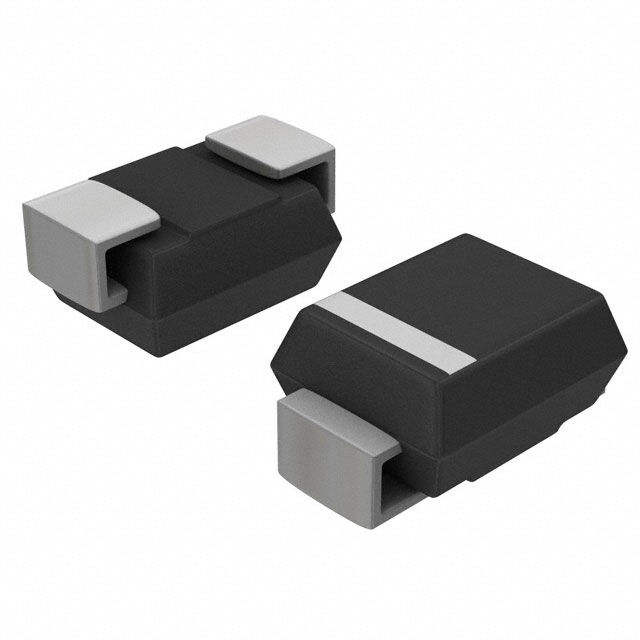

TVS DIODE 28.2VWM 45.7V DO214AB
| Part | Voltage - Reverse Standoff (Typ) | Grade | Operating Temperature [Max] | Operating Temperature [Min] | Power - Peak Pulse | Power - Peak Pulse | Current - Peak Pulse (10/1000µs) | Qualification | Mounting Type | Package / Case | Type | Supplier Device Package | Voltage - Breakdown (Min) [Min] | Voltage - Clamping (Max) @ Ipp [Max] | Power Line Protection | Bidirectional Channels [custom] | Unidirectional Channels [custom] | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MCC (Micro Commercial Components) | 28.2 V | Automotive | 175 °C | -55 °C | 1.5 kW | 1500 W | 33.3 A | AEC-Q101 | Surface Mount | DO-214AB SMC | Zener | DO-214AB (SMC) | 31.4 V | 45.7 V | 1 | |||
 MCC (Micro Commercial Components) | 15.3 V | Automotive | 175 °C | -55 °C | 1.5 kW | 1500 W | 60.3 A | AEC-Q101 | Surface Mount | DO-214AB SMC | Zener | DO-214AB (SMC) | 17.1 V | 25.5 V | 1 | |||
 MCC (Micro Commercial Components) | 58.1 V | 175 °C | -55 °C | 1.5 kW | 1500 W | 16.5 A | Surface Mount | DO-214AB SMC | Zener | DO-214AB (SMC) | 64.6 V | 92 V | 1 | General Purpose | ||||
MCC (Micro Commercial Components) | 70.1 V | Automotive | 175 °C | -55 °C | 1.5 kW | 1500 W | 13.5 A | AEC-Q101 | Surface Mount | DO-214AB SMC | Zener | DO-214AB (SMC) | 77.9 V | 113 V | 1 | |||
MCC (Micro Commercial Components) | 77.8 V | 175 °C | -55 °C | 1.5 kW | 1500 W | 12.2 A | Surface Mount | DO-214AB SMC | Zener | DO-214AB (SMC) | 86.5 V | 125 V | 1 | General Purpose | ||||
MCC (Micro Commercial Components) | 171 V | Automotive | 175 °C | -55 °C | 1.5 kW | 1500 W | 5.5 A | AEC-Q101 | Surface Mount | DO-214AB SMC | Zener | DO-214AB (SMC) | 190 V | 274 V | 1 | General Purpose | ||
MCC (Micro Commercial Components) | 145 V | Automotive | 175 °C | -55 °C | 1.5 kW | 1500 W | 6.5 A | AEC-Q101 | Surface Mount | DO-214AB SMC | Zener | DO-214AB (SMC) | 162 V | 234 V | 1 | General Purpose | ||
MCC (Micro Commercial Components) | 5.8 V | 175 °C | -55 °C | 1.5 kW | 1500 W | 144.8 A | Surface Mount | DO-214AB SMC | Zener | DO-214AB (SMC) | 6.45 V | 10.5 V | 1 | General Purpose | ||||
 MCC (Micro Commercial Components) | 7.02 V | 175 °C | -55 °C | 1.5 kW | 1500 W | 125.6 A | Surface Mount | DO-214AB SMC | Zener | DO-214AB (SMC) | 7.79 V | 12.1 V | 1 | General Purpose | ||||
MCC (Micro Commercial Components) | 94 V | Automotive | 175 °C | -55 °C | 1.5 kW | 1500 W | 10 A | AEC-Q101 | Surface Mount | DO-214AB SMC | Zener | DO-214AB (SMC) | 105 V | 152 V | 1 | General Purpose |
