NPTC391 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

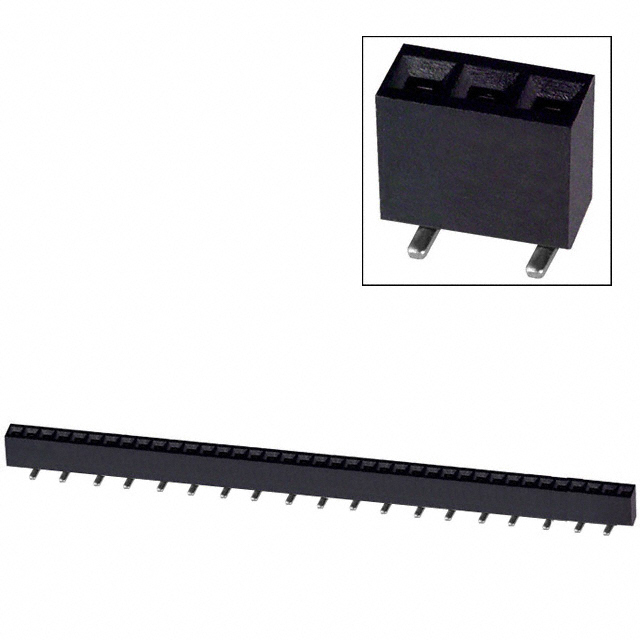

CONN HDR 39POS 0.1 TIN SMD
| Part | Contact Material | Contact Shape | Insulation Material | Material Flammability Rating | Contact Type | Connector Type | Number of Rows | Number of Positions Loaded | Voltage Rating | Pitch - Mating | Pitch - Mating | Mounting Type | Termination | Insulation Height | Insulation Height | Fastening Type | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Post | Current Rating (Amps) | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Phosphor Bronze | Square | Nylon 6T Polyamide (PA6T) | UL94 V-0 | Female Socket | Header Top or Bottom Entry | 1 | All | 250 V | 0.1 " | 2.54 mm | Surface Mount | Solder | 0.28 in | 7.1 mm | Push-Pull | 39 | -40 C | 105 ░C | Tin | 3 A | Black |
