THB1248 Series

Catalog

FAN AXIAL 120X38MM 48VDC WIRE

Part	Voltage Range [Min]	Voltage Range [Max]	Current Rating (Amps)	Lifetime @ Temp.	Material - Blade	Material - Frame	Approval Agency	RPM	Weight [custom]	Weight [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Width [y]	Static Pressure	Static Pressure	Noise	Voltage - Rated	Fan Type	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Air Flow	Air Flow	Bearing Type	Features	Ingress Protection	Weight	Weight

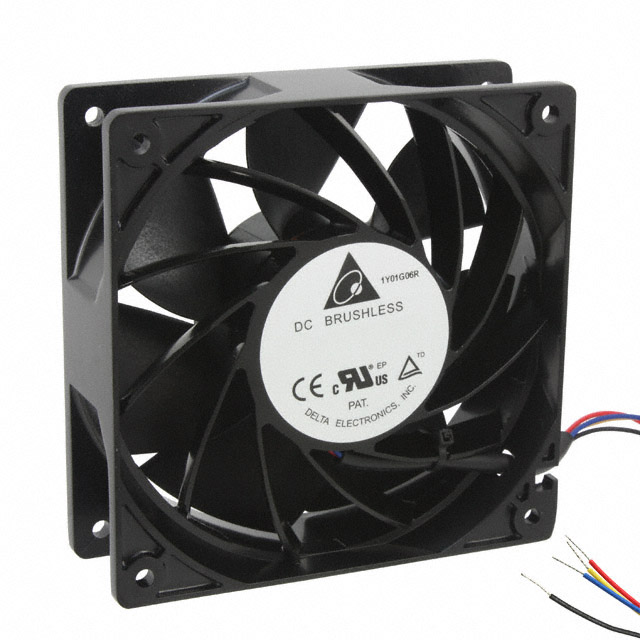

Delta Electronics THB1248CE	36 VDC	60 V	0.95 A	70000 Hrs	Plastic	Aluminum	CE cURus TUV	7800 RPM	415.04 g	0.915 lb	70 °C	-10 °C	4 Wire Leads	38 mm	2.03 in H2O	505.7 Pa	70 dB(A)	48 VDC	Tubeaxial	45.6 W	120 mm	120 mm	262 CFM	7.34 m³/min	Ball	Locked Rotor Protection PWM Control Speed Sensor (Tach)

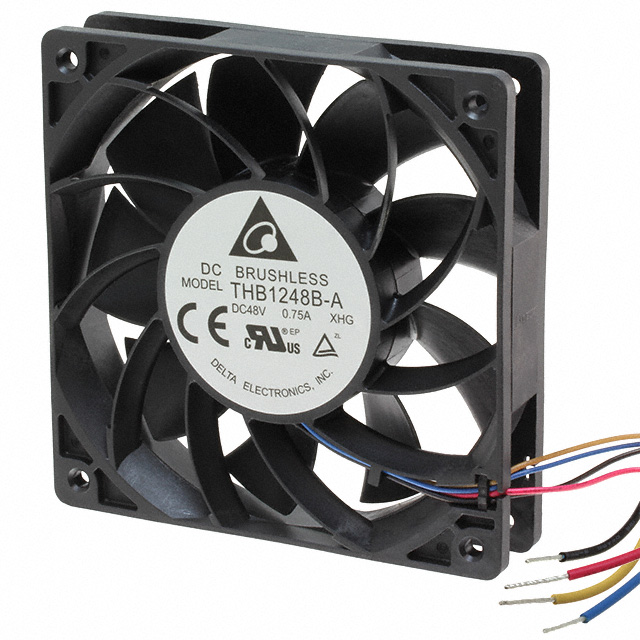

Delta Electronics THB1248B-AXHG	36 VDC	75 VDC	400 mA	70000 Hrs	Plastic	Plastic	CE cURus TUV	5300 RPM			70 °C	-10 °C	4 Wire Leads	25.4 mm	0.962 in H2O	239.6 Pa	59 dB(A)	48 VDC	Tubeaxial	19.2 W	120 mm	120 mm	186.6 CFM	5.22 m³/min	Ball	Locked Rotor Protection PWM Control Speed Sensor (Tach)	IP54 - Dust Protected Water Resistant	0.437 lb	198 g

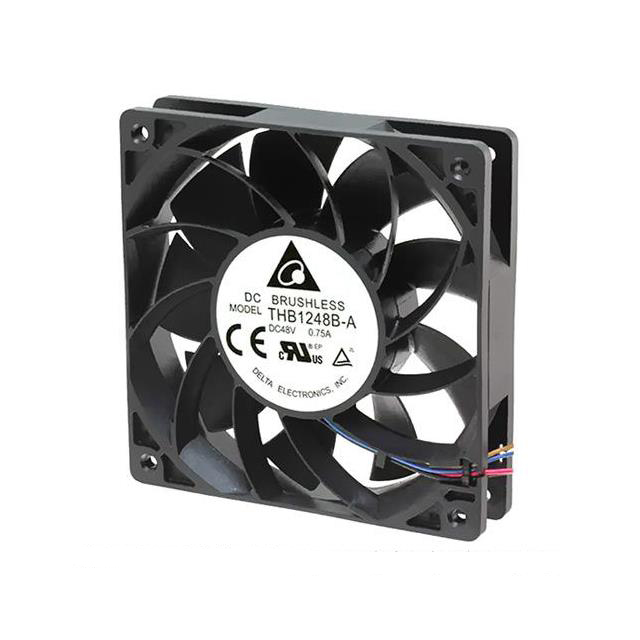

Delta Electronics THB1248B-A	36 VDC	75 VDC	400 mA	70000 Hrs	Plastic	Plastic	CE cURus TUV	5300 RPM			70 °C	-10 °C	4 Wire Leads	25.4 mm	0.962 in H2O	239.6 Pa	59 dB(A)	48 VDC	Tubeaxial	19.2 W	120 mm	120 mm	186.6 CFM	5.22 m³/min	Ball	Locked Rotor Protection PWM Control Speed Sensor (Tach)		0.437 lb	198 g
