SM03B-SR Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

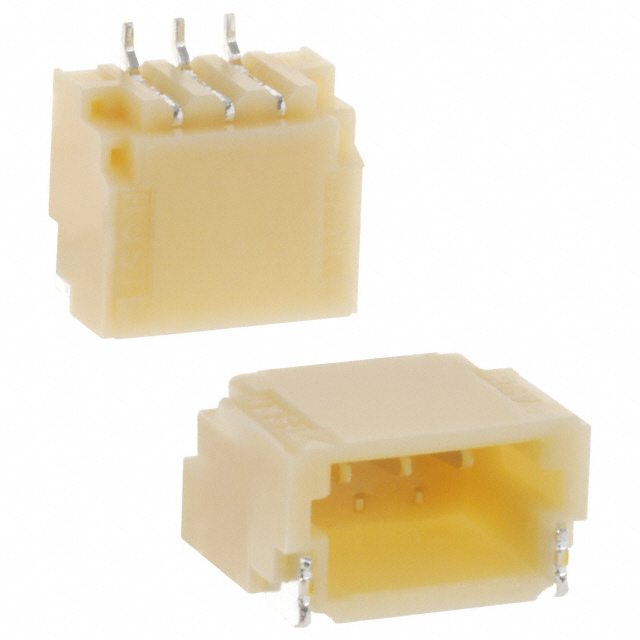

CONN HEADER SMD R/A 3POS 1MM
| Part | Mounting Type | Contact Material | Fastening Type | Voltage Rating | Insulation Material | Shrouding | Contact Type | Material Flammability Rating | Contact Shape | Style | Contact Finish - Post | Termination | Number of Rows | Features | Number of Positions Loaded | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Right Angle Surface Mount | Copper Alloy | Push-Pull | 50 V | Nylon Polyamide (PA) | Shrouded - 4 Wall | Male Pin | UL94 V-0 | Square | Board to Cable/Wire | Tin | Solder | 1 | Solder Retention | All | 0.114 in | 2.9 mm | 1 mm | 0.039 in | Header | 85 °C | -25 °C | Natural |
