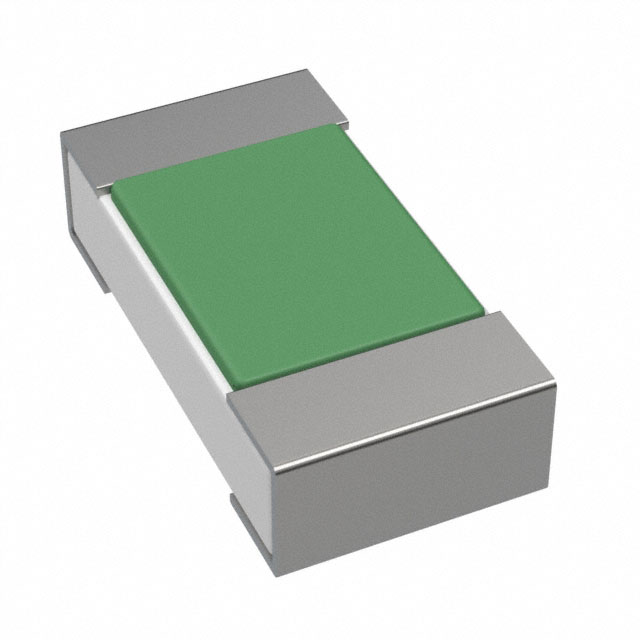

RL-1005 Series

Catalog

RES 0.2 OHM 1% 1/8W 0402

Part	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Features	Temperature Coefficient	Resistance	Power (Watts)	Power (Watts)	Number of Terminations [custom]	Composition	Supplier Device Package	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)
Delta Electronics/Cyntec RL-1005-2-R200-FNH	0402 (1005 Metric)	0.02 in	0.5 mm	0.039 "	1 mm	Current Sense	100 ppm/°C	200 mOhms	0.125 W	0.125 W	2	Metal Film	0402	1 %	-55 C	125 °C	0.02 in	0.5 mm
Delta Electronics/Cyntec RL-1005-2-R100-FNH	0402 (1005 Metric)	0.02 in	0.5 mm	0.039 "	1 mm	Current Sense	100 ppm/°C	0.1 Ohms	0.125 W	0.125 W	2	Metal Film	0402	1 %	-55 C	125 °C	0.02 in	0.5 mm
Delta Electronics/Cyntec RL-1005-7-R400-FNH	0402 (1005 Metric)	0.02 in	0.5 mm	0.039 "	1 mm	Current Sense	100 ppm/°C	0.4 Ohms	0.167 W	0.16666666666666666 W	2	Metal Film	0402	1 %	-55 C	125 °C	0.02 in	0.5 mm
Delta Electronics/Cyntec RL-1005-2-R400-FNH	0402 (1005 Metric)	0.02 in	0.5 mm	0.039 "	1 mm	Current Sense	100 ppm/°C	0.4 Ohms	0.125 W	0.125 W	2	Metal Film	0402	1 %	-55 C	125 °C	0.02 in	0.5 mm
Delta Electronics/Cyntec RL-1005-1-R050-FNH	0402 (1005 Metric)	0.02 in	0.5 mm	0.039 "	1 mm	Current Sense		0.05 Ohms	0.063 W	0.0625 W	2	Metal Film	0402	1 %	-55 C	125 °C	0.02 in	0.5 mm
Delta Electronics/Cyntec RL-1005-2-R060-FNH	0402 (1005 Metric)	0.02 in	0.5 mm	0.039 "	1 mm	Current Sense		0.06 Ohms	0.125 W	0.125 W	2	Metal Film	0402	1 %	-55 C	125 °C	0.02 in	0.5 mm
Delta Electronics/Cyntec RL-1005-7-R050-FNH	0402 (1005 Metric)	0.02 in	0.5 mm	0.039 "	1 mm	Current Sense		0.05 Ohms	0.167 W	0.16666666666666666 W	2	Metal Film	0402	1 %	-55 C	125 °C	0.02 in	0.5 mm
Delta Electronics/Cyntec RL-1005-2-R150-FNH	0402 (1005 Metric)	0.02 in	0.5 mm	0.039 "	1 mm	Current Sense	100 ppm/°C	0.15 Ohms	0.125 W	0.125 W	2	Metal Film	0402	1 %	-55 C	125 °C	0.02 in	0.5 mm
Delta Electronics/Cyntec RL-1005-1-R400-FNH	0402 (1005 Metric)	0.02 in	0.5 mm	0.039 "	1 mm	Current Sense	100 ppm/°C	0.4 Ohms	0.063 W	0.0625 W	2	Metal Film	0402	1 %	-55 C	125 °C	0.02 in	0.5 mm
Delta Electronics/Cyntec RL-1005-7-R060-FNH	0402 (1005 Metric)	0.02 in	0.5 mm	0.039 "	1 mm	Current Sense		0.06 Ohms	0.167 W	0.16666666666666666 W	2	Metal Film	0402	1 %	-55 C	125 °C	0.02 in	0.5 mm
