Y5V Series

Catalog

CAPACITOR,CERAMIC,68000PF,16VDC,20-% TOL,80+% TOL,Y5V-TC CODE,-82,22PPM-TC ROHS COMPLIANT: YES

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Applications	Capacitance	Package / Case	Temperature Coefficient	Voltage - Rated	Tolerance [Max]	Tolerance [Min]	Thickness (Max) [Max]	Thickness (Max) [Max]	Thickness (Max) [Max] [z]	Thickness (Max)	Package / Case	Tolerance
KYOCERA AVX 0402YG683ZAT2A	85 °C	-30 ░C	MLCC Surface Mount	0.02 in	0.5 mm	0.039 "	1 mm	General Purpose	0.068 µF	0402 (1005 Metric)	Y5V (F)	16 V	80 %	-20 %	0.022 in	0.56 mm
KYOCERA AVX 08055G105ZAT2A	85 °C	-30 ░C	MLCC Surface Mount		0.049 " 1.25 mm		0.079 in 2.01 mm	General Purpose	1 µF	0805	Y5V (F)	50 VDC	80 %	-20 %	0.057 "	1.45 mm
KYOCERA AVX 0805ZG475ZAT2A	85 °C	-30 ░C	MLCC Surface Mount		0.049 " 1.25 mm		0.079 in 2.01 mm	General Purpose	4.7 µF	0805	Y5V (F)	10 V	80 %	-20 %	0.057 "	1.45 mm

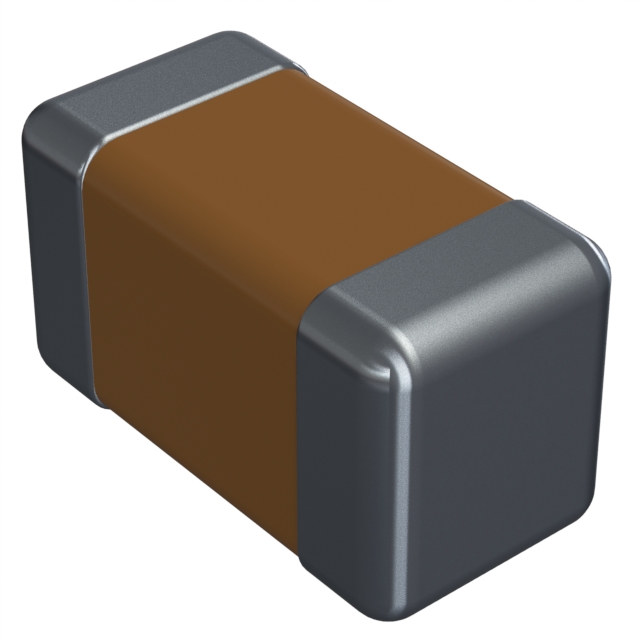

KYOCERA AVX 0603YG683ZAT2A	85 °C	-30 ░C	MLCC Surface Mount	0.032 in	0.81 mm	0.063 "	1.6 mm	General Purpose	0.068 µF	0603	Y5V (F)	16 V	80 %	-20 %			0.035 in	0.9 mm	1608 Metric
KYOCERA AVX 08053G684ZAT2A	85 °C	-30 ░C	MLCC Surface Mount		0.049 " 1.25 mm		0.079 in 2.01 mm	General Purpose	0.68 µF	0805	Y5V (F)	25 VDC	80 %	-20 %	0.055 in	1.4 mm
KYOCERA AVX 0805YG475ZAT2A	85 °C	-30 ░C	MLCC Surface Mount		0.049 " 1.25 mm		0.079 in 2.01 mm	General Purpose	4.7 µF	0805	Y5V (F)	16 V	80 %	-20 %	0.057 "	1.45 mm
KYOCERA AVX 0603ZG225ZAT2A	85 °C	-30 ░C	MLCC Surface Mount	0.032 in	0.81 mm	0.063 "	1.6 mm	General Purpose	2.2 µF	0603	Y5V (F)	10 V	80 %	-20 %			0.035 in	0.9 mm	1608 Metric
KYOCERA AVX 06033G104MAT2A	85 °C	-30 ░C	MLCC Surface Mount	0.032 in	0.81 mm	0.063 "	1.6 mm	General Purpose	100000 pF	0603	Y5V (F)	25 VDC					0.035 in	0.9 mm	1608 Metric	20 %
KYOCERA AVX 06035G333ZAT2A	85 °C	-30 ░C	MLCC Surface Mount	0.032 in	0.81 mm	0.063 "	1.6 mm	General Purpose	0.033 çF	0603	Y5V (F)	50 VDC	80 %	-20 %			0.035 in	0.9 mm	1608 Metric
KYOCERA AVX 06035G472ZAT2A	85 °C	-30 ░C	MLCC Surface Mount	0.032 in	0.81 mm	0.063 "	1.6 mm	General Purpose	0.0047 µF	0603	Y5V (F)	50 VDC	80 %	-20 %			0.035 in	0.9 mm	1608 Metric
