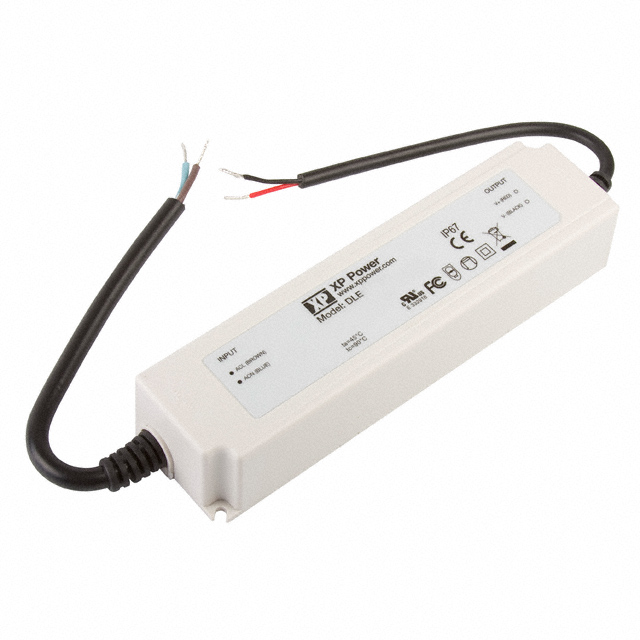

DLE45 Series

Manufacturer: XP Power

Catalog

LED DRIVER CC/CV AC/DC 34-48V 1A

Part	Mounting Type	Weight	Weight	Current - Output (Max) [Max]	Type	Voltage - Output [Min]	Voltage - Output [Max]	Ratings	Termination Style	Number of Outputs	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Isolation	Topology	Features	Power (Watts)	Voltage - Input (Min) [Min]	Efficiency	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Size / Dimension [y]	Size / Dimension [z]
XP Power DLE45PS48	Chassis Mount	0.9 lb	408.23 g	1 A	Constant Current Voltage	34 V	48 V	IP67	Wire Leads	1	164.1 mm	1.78 in	1.27 in	32.5 mm	45.3 mm	6.73 in	3750 VDC	AC DC Converter	OCP OVP SCP	48 W	90 VAC	87 %	305 VAC	-20 ░C	50 °C	CE TUV UL
XP Power DLE45PS24	Chassis Mount	0.9 lb	408.23 g	1.85 A	Constant Current Voltage	16 V	24 V	IP67	Wire Leads	1	164.1 mm	1.78 in	1.27 in	32.5 mm	45.3 mm	6.73 in	3750 VDC	AC DC Converter	OCP OVP SCP	45 W	90 VAC	85 %	305 VAC	-20 ░C	50 °C	CE TUV UL
XP Power DLE45PS36	Chassis Mount	0.9 lb	408.23 g	1.25 A	Constant Current Voltage	24 V	36 V	IP67	Wire Leads	1	164.1 mm 171.1 mm	1.78 in	1.27 in	32.3 mm 32.5 mm	45.2 mm 45.3 mm	6.73 in	3750 VDC	AC DC Converter	OCP OVP SCP	45 W	90 VAC	86 %	305 VAC	-20 ░C	50 °C	CE TUV UL	1.78 in	1.27 "
