TR9KE2000 Series
Manufacturer: GlobTek, Inc.
Beta
⌘K

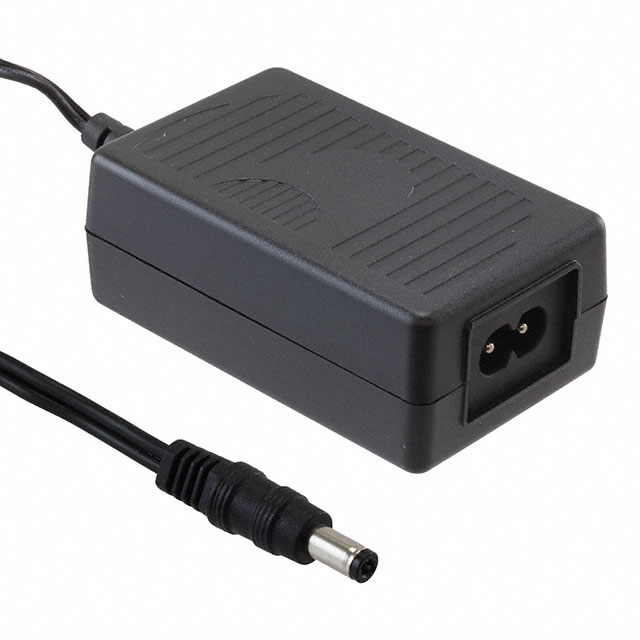

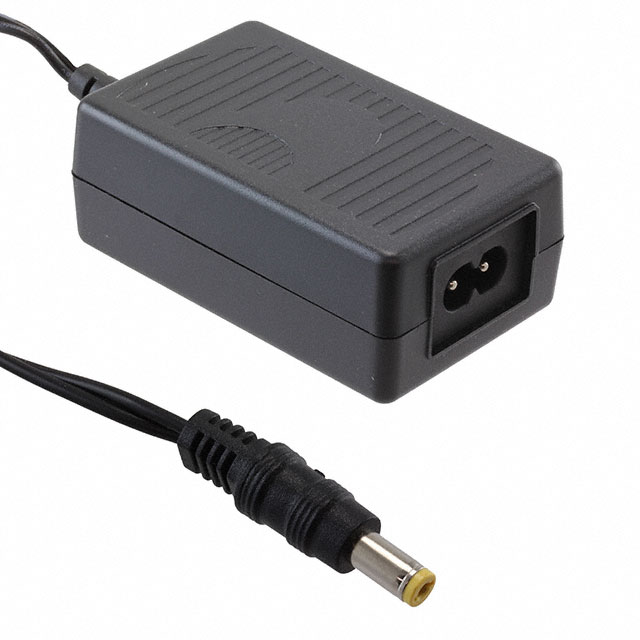

AC/DC DESKTOP ADAPTER 12V 24W
| Part | Polarization | Region Utilized | Output Connector [diameter] | Output Connector | Output Connector [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | No Load Power Consumption | Efficiency | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Input Connector | Voltage - Input [Max] | Voltage - Input [Min] | Form | Input Type | Applications | Voltage - Output | Current - Output (Max) [Max] | Standard Number | Power (Watts) | Cord Length | Cord Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GlobTek, Inc. | Positive Center | International | 2.5 mm 5.5 mm | Barrel Plug | 11 mm | 31 mm | 1.97 in | 80.6 mm | 50 mm | 1.22 in | 3.17 in | 75 mW | Level VI | CB CE cULus EAC LPS PSE RCM S-Mark SIQ UkrSEPRO VCCI | 40 °C | 0 °C | IEC 320-C8 | 264 VAC | 90 VAC | Desktop (Class II) | Cord (Sold Separately) | ITE (Commercial) | 12 V | 2 A | 60950-1 | 24 W | 60.2 in | 1.53 m |
 GlobTek, Inc. | Positive Center | International | 2.1 mm 5.5 mm | Barrel Plug | 11 mm | 31 mm | 1.97 in | 80.6 mm | 50 mm | 1.22 in | 3.17 in | 75 mW | Level VI | CB CE cULus EAC LPS PSE RCM S-Mark SIQ UkrSEPRO VCCI | 40 °C | 0 °C | IEC 320-C8 | 264 VAC | 90 VAC | Desktop (Class II) | Cord (Sold Separately) | ITE (Commercial) | 12 V | 2 A | 60950-1 | 24 W | 60.2 in | 1.53 m |
