17-030 Series

Catalog

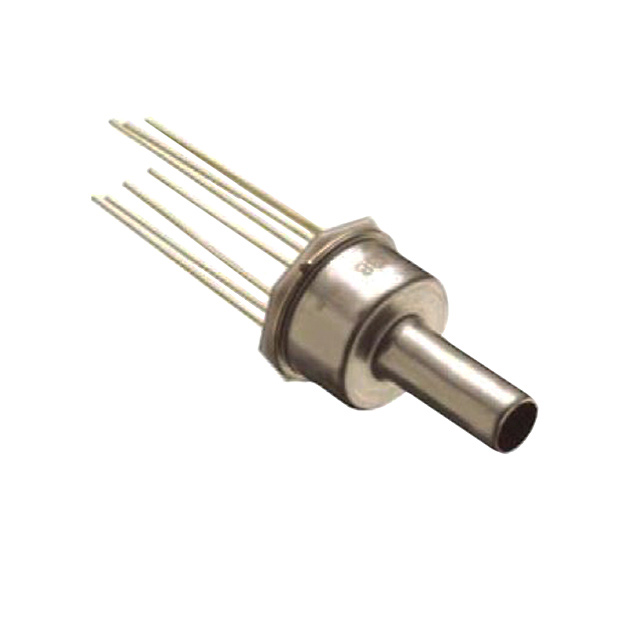

SENSOR 30PSIG 0.19" 0.1V TO8

Part	Supplier Device Package	Output Type	Output [Min]	Output [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Operating Pressure	Operating Pressure	Maximum Pressure [Max]	Maximum Pressure	Port Style	Pressure Type	Accuracy	Package / Case	Features	Termination Style	Port Size	Port Size	Port Size	Applications

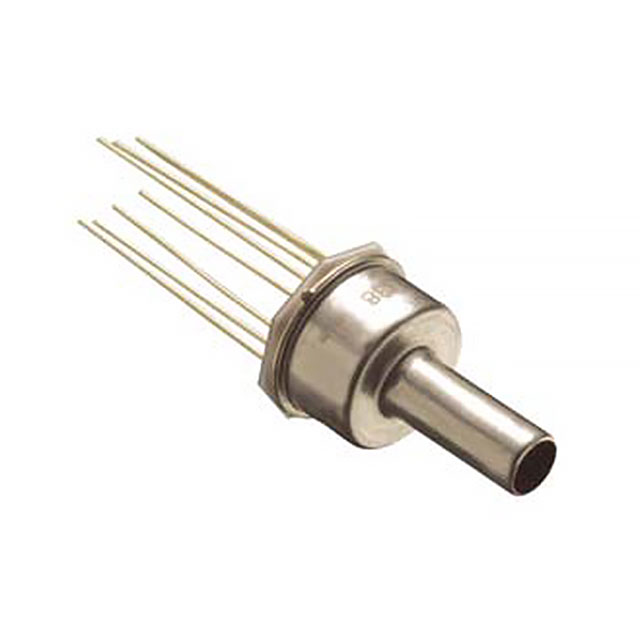

TE Connectivity AMP Connectors 17-030G	TO-8	Wheatstone Bridge	0 mV	100 mV	Through Hole	125 °C	-40 C	30 PSI	206.84 kPa	90 PSI	620.53 kPa	Barbless	Vented Gauge	0.1 %	TO-8 Style 12 Leads	Temperature Compensated	PC Pin	Male Tube	4.78 mm	0.19 in	Board Mount
TE Connectivity AMP Connectors 17-030A	TO-8	Wheatstone Bridge	0 mV	100 mV	Through Hole	125 °C	-40 C	30 PSI	206.84 kPa	90 PSI	620.53 kPa	Barbless		0.1 %	TO-8 Style 12 Leads	Temperature Compensated	PC Pin	Male Tube	4.78 mm	0.19 in	Board Mount
