KDS10 Series
Manufacturer: Phoenix Contact
Beta
⌘K

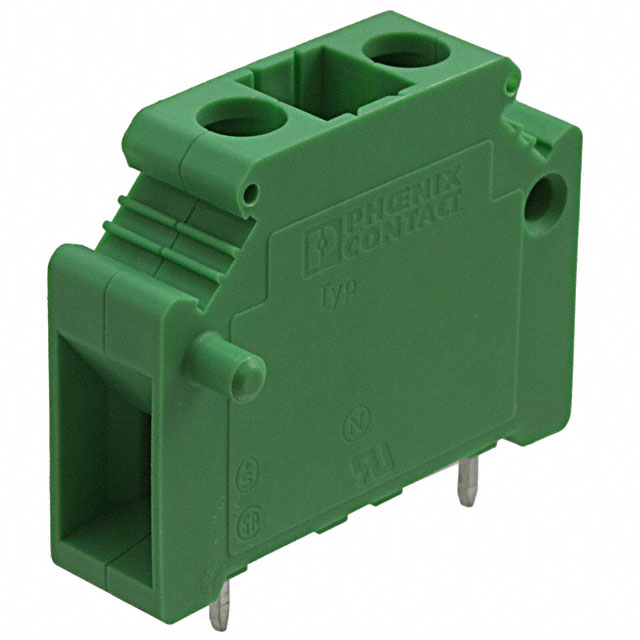

TERM BLOCK 1POS SIDE ENTRY PCB
| Part | Screw Thread | Housing Material | Torque - Screw [Max] | Torque - Screw [Min] | Torque - Screw [Min] | Torque - Screw [Max] | Current | Wire Gauge [Max] | Wire Gauge [Min] | Voltage | Wire Termination | Positions Per Level | Features | Mating Orientation | Color | Mounting Type | Number of Levels |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | M4 | Polyamide (PA) Nylon | 13.3 Lb-In | 10.6 Lb-In | 1.2 Nm | 1.5 Nm | 65 A | 24 AWG | 6 AWG | 600 V | Screw - Rising Cage Clamp | 1 | Feed Through Interlocking (Side) | Horizontal with Board | Green | Through Hole | 1 |
