BFB03505 Series

Catalog

FAN BLOWER 35X10MM 5VDC WIRE

Part	Voltage Range [Max]	Voltage Range [Min]	Lifetime @ Temp.	Material - Blade	Current Rating (Amps)	Material - Frame	Width [y]	Weight	Weight	Termination	Noise	Size / Dimension [x]	Size / Dimension	Size / Dimension [y]	Approval Agency	Power (Watts)	Fan Type	RPM	Bearing Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Static Pressure	Static Pressure	Features	Air Flow	Air Flow

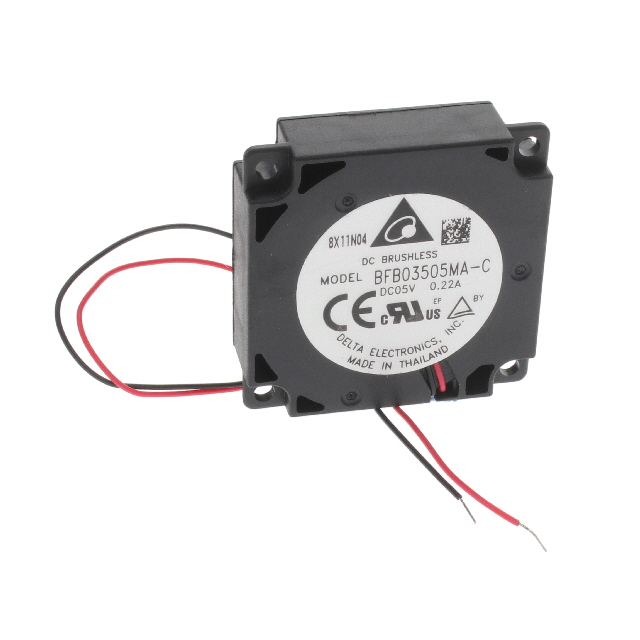

Delta Electronics BFB03505MA-C	5.5 V	4.5 V	30000 Hrs	Plastic	120 mA	Plastic	10 mm	11.34 g	0.025 lb	2 Wire Leads	26 dB	35 mm	Square	35 mm	CE cURus TUV	600 mW	Blower	6500 RPM	Ball	70 °C	-10 °C	5 V	58.8 Pa	0.236 in H2O
Delta Electronics BFB03505MA-CR00	5.5 V	4.5 V	30000 Hrs	Plastic	120 mA	Plastic	10 mm	11.34 g	0.025 lb	3 Wire Leads	26 dB	35 mm	Square	35 mm	CE cURus TUV	600 mW	Blower	6500 RPM	Ball	70 °C	-10 °C	5 V	58.8 Pa	0.236 in H2O	Locked Rotor Sensor

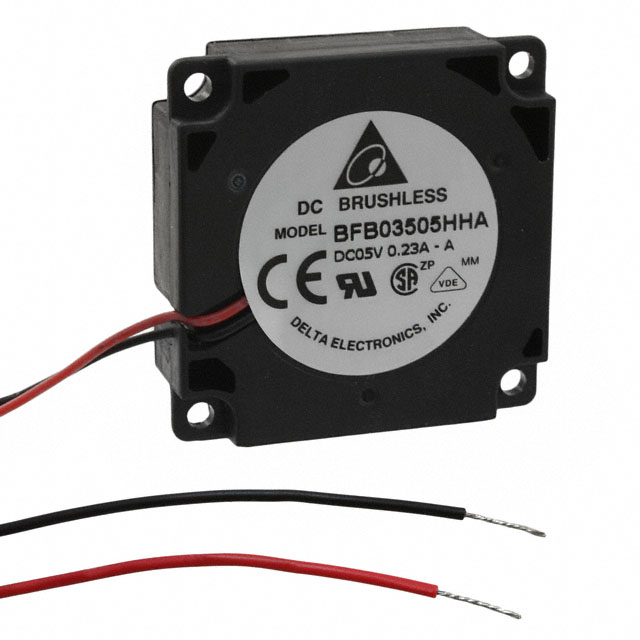

Delta Electronics BFB03505HHA-A	5.5 V	4 VDC	30000 Hrs	Plastic	150 mA	Plastic	10 mm	11.34 g	0.025 lb	2 Wire Leads	31 dB(A)	35 mm	Square	35 mm	CE CSA UL VDE	0.75 W	Blower	8500 RPM	Ball	70 °C	-10 °C	5 V	110.3 Pa	0.443 in H2O

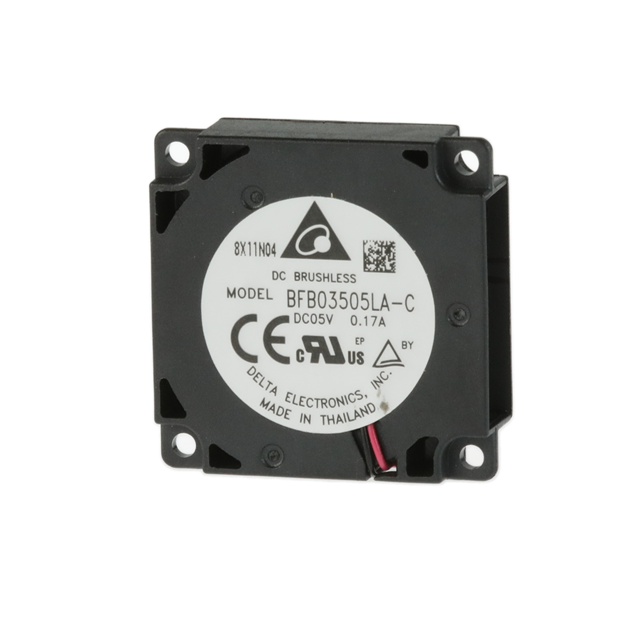

Delta Electronics BFB03505LA-CF00	5.5 V	4.5 V	30000 Hrs	Plastic	0.09 A	Plastic	10 mm	11.34 g	0.025 lb	3 Wire Leads	24 dB	35 mm	Square	35 mm	CE cURus TUV	450 mW	Blower	5500 RPM	Ball	70 °C	-10 °C	5 V	40.6 Pa	0.163 in H2O	Locked Rotor Protection Speed Sensor (Tach)	1.3 CFM	0.036 m³/min
