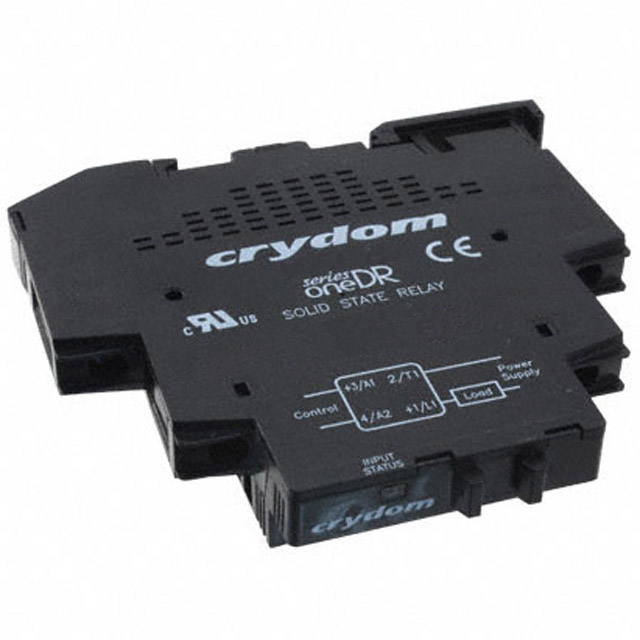

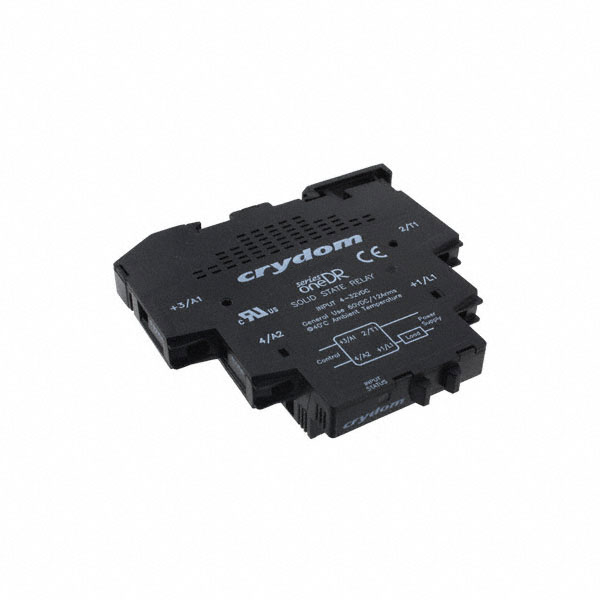

DR06D12 Series
Manufacturer: Sensata-Crydom
Beta
⌘K
SSR RELAY SPST-NO 12A 1-60V
| Part | Voltage - Load [Max] | Voltage - Load [Min] | Load Current | Mounting Type | Voltage - Input [Max] | Voltage - Input [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Output Type | On-State Resistance (Max) [Max] | Approval Agency | Termination Style | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sensata-Crydom | 60 V | 1 V | 12 A | DIN Rail | 32 VDC | 4 V | -20 ░C | 40 °C | DC | 100 mOhm | CE cULus | Screw Terminal | Module |
 Sensata-Crydom | 60 V | 1 V | 12 A | DIN Rail | 32 VDC | 4 V | -20 ░C | 40 °C | DC | 100 mOhm | CE cULus | Screw Terminal | Module |
