Z1806C Series
Manufacturer: KEMET
Beta
⌘K

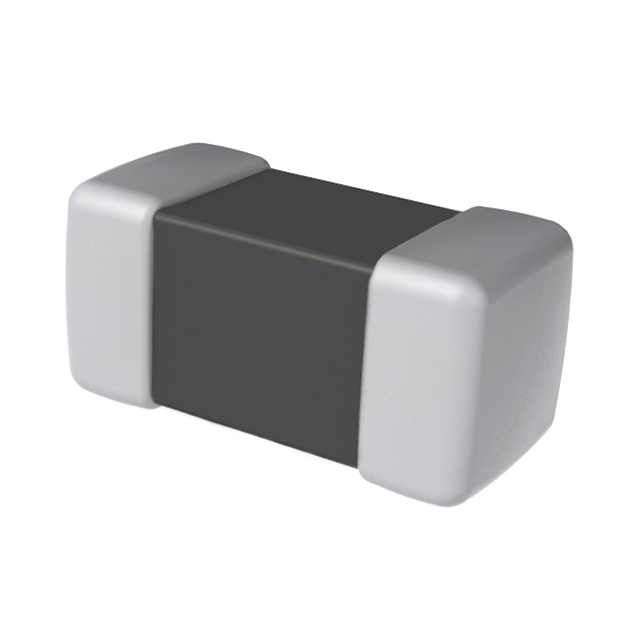

FERRITE BEAD 56 OHM 1806 1LN
| Part | Impedance @ Frequency | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Filter Type | Number of Lines | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Current Rating (Max) [Max] | Height (Max) [z] | Height (Max) [z] | DC Resistance (DCR) (Max) [Max] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 56 Ohms | 125 °C | -40 C | Surface Mount | Power Line | 1 | 0.063 " | 0.177 in | 1.6 mm | 4.5 mm | 6 A | 0.051 in | 1.3 mm | 7 mOhm | 1806 (4516 Metric) |
KEMET | 72 Ohms | 125 °C | -40 C | Surface Mount | Power Line | 1 | 0.063 " | 0.177 in | 1.6 mm | 4.5 mm | 6 A | 0.051 in | 1.3 mm | 7 mOhm | 1806 (4516 Metric) |
KEMET | 110 Ohms | 125 °C | -40 C | Surface Mount | Power Line | 1 | 0.063 " | 0.177 in | 1.6 mm | 4.5 mm | 4 A | 0.051 in | 1.3 mm | 14 mOhm | 1806 (4516 Metric) |
