149-0701 Series
Manufacturer: Cinch Connectivity Solutions Johnson
Beta
⌘K

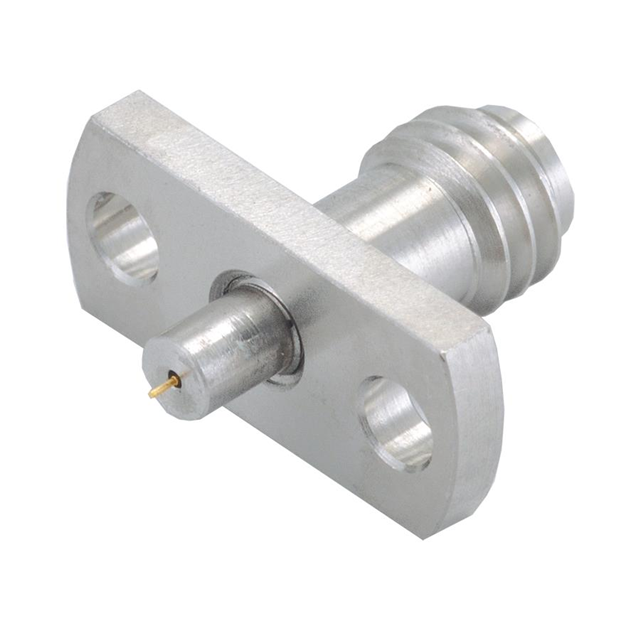

1.0MM FEMALE PANEL END LAUNCH -
| Part | Operating Temperature (Min) | Operating Temperature (Max) | Body Material | Center Contact Plating | Mating Cycles | Insertion Loss | Voltage Rating | Dielectric Material | Center Contact Material | Mounting Type | Connector Type | Frequency - Max | Shield Termination | Number of Ports | Features | Connector Plug Diameter | Contact Termination | Fastening Type | Impedance | Housing Color | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions Johnson | -65 °C | 165 °C | Stainless Steel | Gold | 500 cycles | 0.7 dB | 150 VDC | Polytetrafluoroethylene (PTFE) | Beryllium Copper | Panel Mount | Female Socket Jack | 110 GHz | Screw | 1 | Mounting Hardware | 1 mm | Solder | Threaded | 50 Ohm | Silver | Flange |
