NRPN092 Series
Manufacturer: Sullins Connector Solutions
Catalog

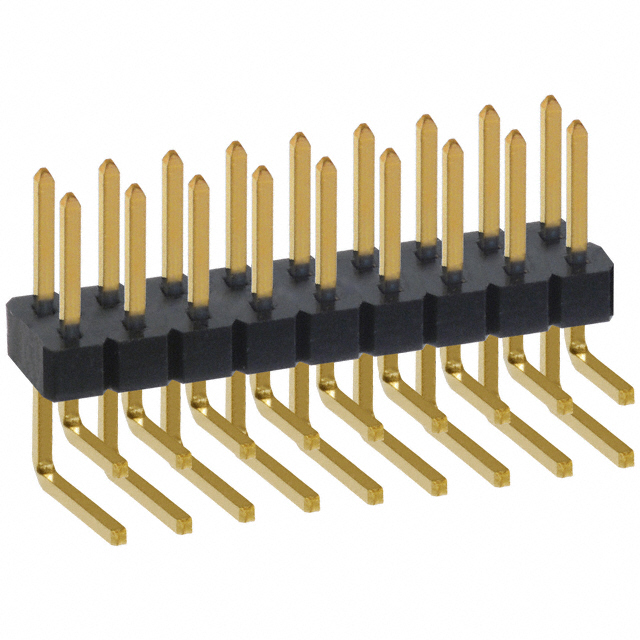

CONN HEADER R/A 18POS 2MM
| Part | Insulation Color | Contact Type | Fastening Type | Pitch - Mating [x] | Pitch - Mating [x] | Number of Positions | Contact Finish - Post | Style | Contact Material | Number of Rows | Contact Length - Mating | Contact Length - Mating | Contact Finish - Mating | Contact Finish Thickness - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Insulation Material | Current Rating (Amps) | Mounting Type | Row Spacing - Mating | Row Spacing - Mating | Termination | Insulation Height [custom] | Insulation Height [custom] | Number of Positions Loaded | Material Flammability Rating | Contact Length - Post [x] | Contact Length - Post | Contact Finish Thickness - Post | Contact Shape | Voltage Rating | Shrouding | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Black | Male Pin | Push-Pull | 0.079 in | 2 mm | 18 | Gold | Board to Board Cable | Brass | 2 | 0.141 in | 3.6 mm | Gold | Flash | -40 °C | 105 ░C | Header | Nylon 6T Polyamide (PA6T) | 2 A | Through Hole Right Angle | 0.079 in | 2 mm | Solder | 0.157 in | 4 mm | All | UL94 V-0 | 0.11 in | 2.79 mm | Flash | Square | 150 VDC | Unshrouded | ||
 Sullins Connector Solutions | Black | Male Pin | Push-Pull | 0.079 in | 2 mm | 18 | Gold | Board to Board Cable | Brass | 2 | 0.141 in | 3.6 mm | Gold | Flash | -40 °C | 105 ░C | Header | Nylon 6T Polyamide (PA6T) | 2 A | Surface Mount | 0.079 in | 2 mm | Solder | All | UL94 V-0 | Flash | Square | 150 VDC | Unshrouded | 1.5 mm | 0.059 " |
