S21M0C-P Series

Manufacturer: ODU

Catalog

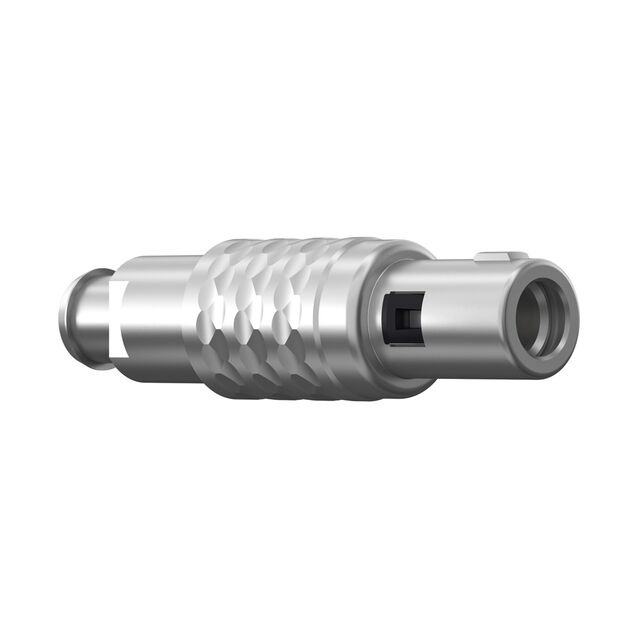

ODU MEDI-SNAP METAL, STRAIGHT PL

Part	Voltage Rating	Cable Opening	Cable Opening [Max]	Cable Opening [Min]	Primary Material	Shell Size - Insert	Ingress Protection	Number of Positions	Color	Applications	Shell Finish	Current Rating (Amps)	Backshell Material, Plating	Insert Material	Connector Type	Mounting Type	Fastening Type	Material Flammability Rating	Features	Contact Finish - Mating	Shell Material	Shielding	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]
ODU S21M0C-P04MJG0-52CS	48 VDC	4 mm 5.2 mm	0.205 in	0.157 in	Metal	1	IP50 - Dust Protected	4	Silver	Industrial Medical Testing Equipment & Measurement	Chrome	7.5 A	Brass Chrome	Polyetheretherketone (PEEK)	Plug Male Pins	Free Hanging (In-Line)	Detent Lock Push-Pull	UL94 V-0	Backshell Strain Relief	Gold	Brass	Unshielded	Brass	120 °C	-50 °C
ODU S21M0C-P06MFG0-52CS	33 V	4 mm 5.2 mm	0.205 in	0.157 in	Metal	1	IP50 - Dust Protected	6	Silver	Industrial Medical Testing Equipment & Measurement	Chrome	7.5 A	Brass Chrome	Polyetheretherketone (PEEK)	Plug Male Pins	Free Hanging (In-Line)	Detent Lock Push-Pull	UL94 V-0	Backshell Strain Relief	Gold	Brass	Unshielded	Brass	120 °C	-50 °C
ODU S21M0C-P02MPH0-39CS	48 VDC		0.154 in	0.106 in	Metal	1	IP50 - Dust Protected	2	Silver	Industrial Medical Testing Equipment & Measurement	Chrome	12 Amps	Brass Chrome	Polyetheretherketone (PEEK)	Plug Male Pins	Free Hanging (In-Line)	Detent Lock Push-Pull	UL94 V-0	Backshell Strain Relief	Gold	Brass	Unshielded	Brass	120 °C	-50 °C	3.9 mm	2.7 mm
ODU S21M0C-P10MCC0-39CS	25 V		0.154 in	0.106 in	Metal	1	IP50 - Dust Protected	10	Silver	Industrial Medical Testing Equipment & Measurement	Chrome	4 A	Brass Chrome	Polyetheretherketone (PEEK)	Plug Male Pins	Free Hanging (In-Line)	Detent Lock Push-Pull	UL94 V-0	Backshell Strain Relief	Gold	Brass	Unshielded	Brass	120 °C	-50 °C	3.9 mm	2.7 mm
ODU S21M0C-P12MCC9-52CS	25 V	4 mm 5.2 mm	0.205 in	0.157 in	Metal	1	IP50 - Dust Protected	12	Silver	Industrial Medical Testing Equipment & Measurement	Chrome	4 A	Brass Chrome	Polyetheretherketone (PEEK)	Plug Male Pins	Free Hanging (In-Line)	Detent Lock Push-Pull	UL94 V-0	Backshell Strain Relief	Gold	Brass	Unshielded	Brass	120 °C	-50 °C
ODU S21M0C-P07MFG0-65CS	33 V		0.256 in	0.209 in	Metal	1	IP50 - Dust Protected	7	Silver	Industrial Medical Testing Equipment & Measurement	Chrome	7.5 A	Brass Chrome	Polyetheretherketone (PEEK)	Plug Male Pins	Free Hanging (In-Line)	Detent Lock Push-Pull	UL94 V-0	Backshell Strain Relief	Gold	Brass	Unshielded	Brass	120 °C	-50 °C		5.3 mm	6.5 mm
