G3MC-202 Series

Catalog

SSR RELAY SPST-NO 2A 75-264V

Part	Termination Style	Package / Case	Load Current	Voltage - Load [Min]	Voltage - Load [Max]	Supplier Device Package	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]
Omron Electronics Inc-EMC Div G3MC-202PL-VD-1 DC24	PC Pin	4-SIP	2 A	75 V	264 V	4-SIP	Through Hole	-30 ░C	80 C	AC	CSA UR VDE	19.2 V	28.8 V
Omron Electronics Inc-EMC Div G3MC-202PL-VD DC12	PC Pin	4-SIP	2 A	75 V	264 V	4-SIP	Through Hole	-30 ░C	80 C	AC	CSA UR VDE	9.6 V	14.4 V
Omron Electronics Inc-EMC Div G3MC-202P DC24	PC Pin	4-SIP	2 A	75 V	264 V	4-SIP	Through Hole	-30 ░C	80 C	AC Zero Cross	CSA UR VDE	19.2 V	28.8 V

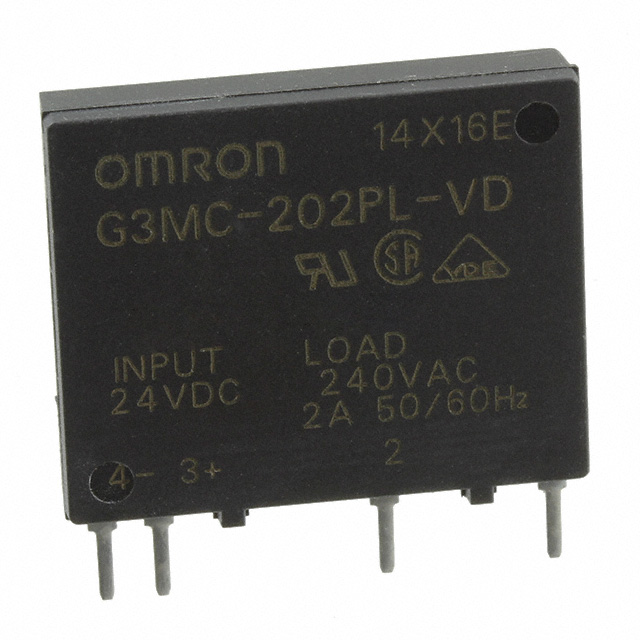

Omron Electronics Inc-EMC Div G3MC-202PL-VD DC24	PC Pin	4-SIP	2 A	75 V	264 V	4-SIP	Through Hole	-30 ░C	80 C	AC	CSA UR VDE	19.2 V	28.8 V
Omron Electronics Inc-EMC Div G3MC-202P-VD DC24	PC Pin	4-SIP	2 A	75 V	264 V	4-SIP	Through Hole	-30 ░C	80 C	AC Zero Cross	CSA UR VDE	19.2 V	28.8 V
Omron Electronics Inc-EMC Div G3MC-202PL-VD DC5	PC Pin	4-SIP	2 A	75 V	264 V	4-SIP	Through Hole	-30 ░C	80 C	AC	CSA UR VDE	4 V	6 V
Omron Electronics Inc-EMC Div G3MC-202P-VD-1 DC24	PC Pin	4-SIP	2 A	75 V	264 V	4-SIP	Through Hole	-30 ░C	80 C	AC Zero Cross	CSA UR VDE	19.2 V	28.8 V
