213768 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

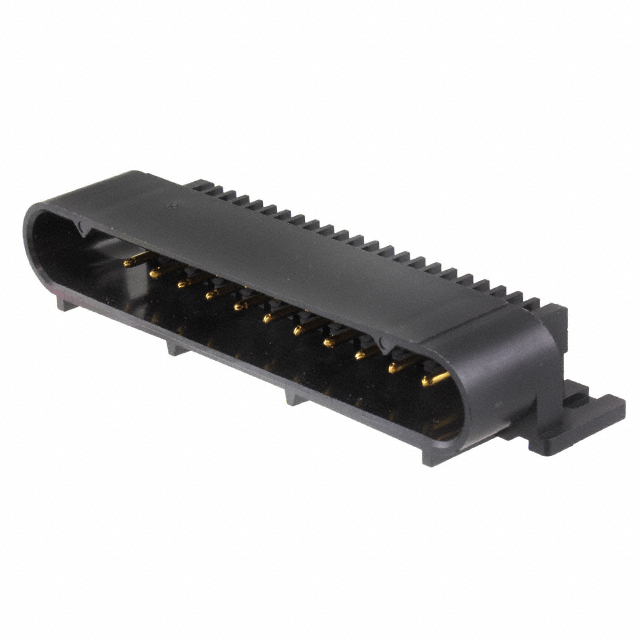

PIN HDR ASSY,23P,MMATE LF
| Part | Mounting Type | Contact Finish - Mating | Termination | Applications | Connector Type | Insulation Color | Pitch - Mating | Pitch - Mating | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Features | Number of Positions Loaded | Material Flammability Rating | Contact Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Type | Insulation Material | Contact Finish - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Height | Insulation Height | Style | Contact Length - Post | Contact Length - Post | Number of Rows | Contact Shape | Voltage Rating | Fastening Type | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Through Hole Right Angle | Gold | Solder | Automotive General Purpose Industrial | Header | Black | 6.35 mm | 0.25 in | 5.08 mm | 0.2 " | Mounting Flange | All | UL94 V-0 | Brass | 150 Áin | 3.81 Ám | Male Pin | Nylon Polyamide (PA) | Tin | 30 Áin | 0.76 Ám | 0.69 " | 17.53 mm | Board to Board Cable | 2.54 mm | 0.1 in | 2 | Circular | 600 V | Push-Pull | 7.5 A | 130 °C | -55 °C | 23 | Shrouded - 4 Wall |
