337-018 Series
Manufacturer: EDAC Inc.
Beta
⌘K

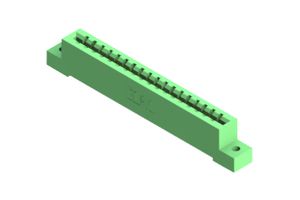

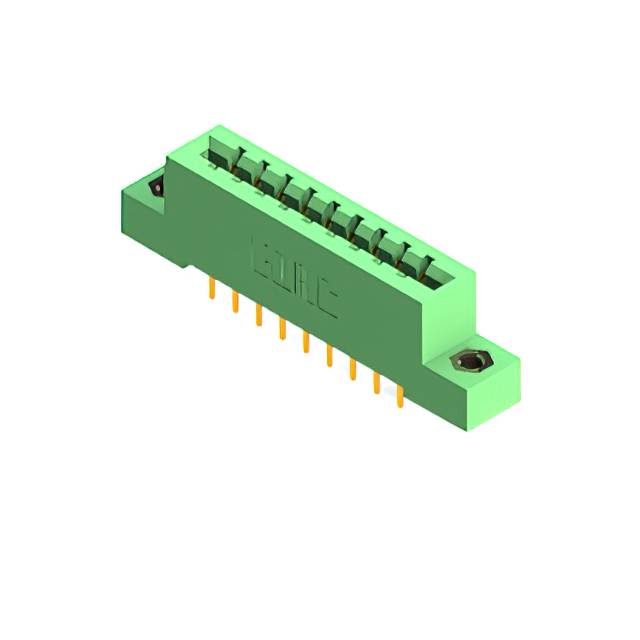

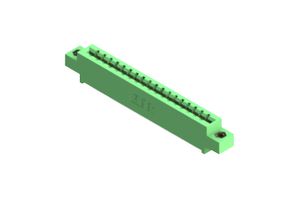

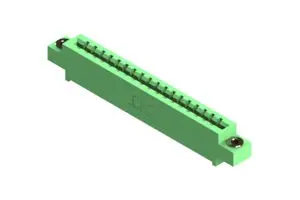

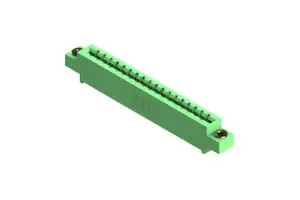

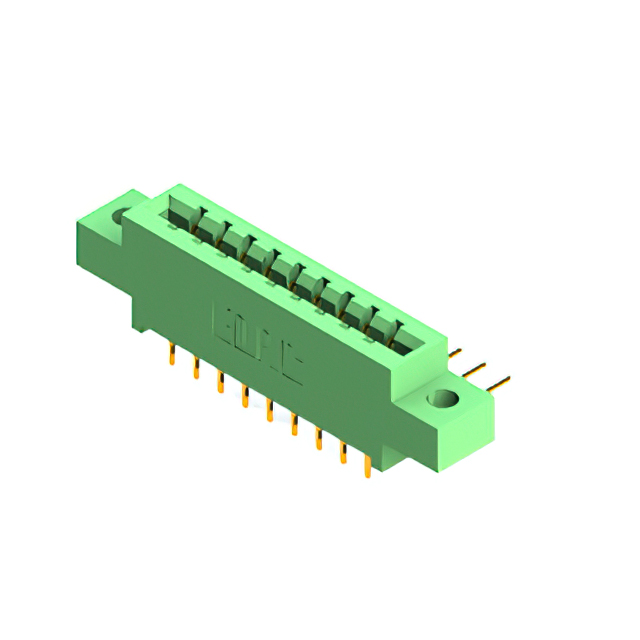

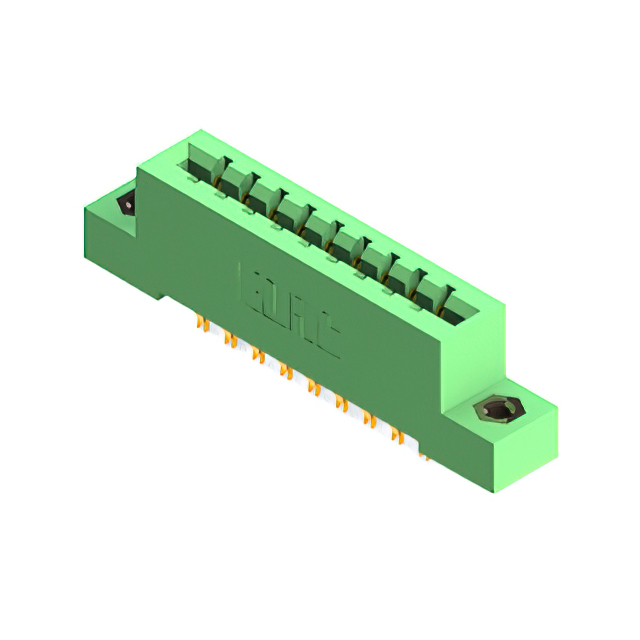

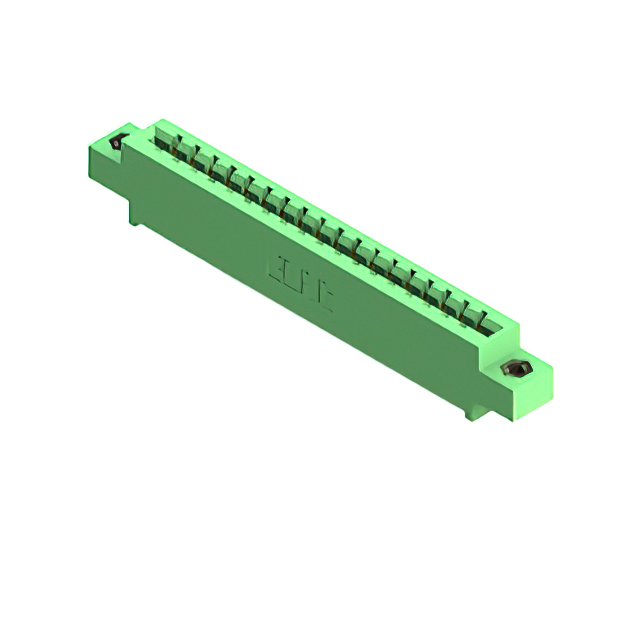

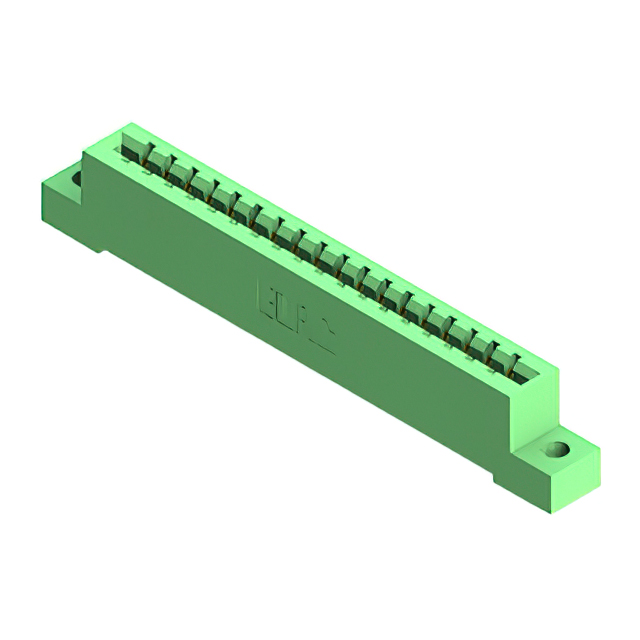

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 18 CONTACTS, PANEL MOUNT, STRAIGHT
| Part | Material - Insulation | Termination Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Card Type | Number of Positions/Bay/Row | Card Thickness [Max] | Card Thickness [Min] | Read Out | Number of Positions | Gender | Features | Termination | Contact Finish | Mounting Type | Contact Material | Contact Type | Flange Feature | Pitch | Pitch | Number of Rows [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Color | Termination Rows | Number of Positions/Bay/Row [custom] | Number of Rows | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | 9 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 18 | Female | Card Guides | Solder Eyelet(s) | Gold | Through Hole | Copper Alloy | Cantilever | 4-40 Threaded Insert Top Mount Opening | 3.96 mm | 0.156 in | 2 | -40 C | 105 ░C | Green | |||||
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | 9 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 18 | Female | Card Guides | Wire Wrap | Gold | Through Hole | Copper Alloy | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | 3.96 mm | 0.156 in | 2 | -40 C | 105 ░C | Green | |||||
 EDAC Inc. | Polyester Thermoplastic | 0.25 Ám | 10 Áin | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 18 | Female | Wire Wrap | Gold | Through Hole | Copper Alloy | Cantilever | 4-40 Threaded Insert Top Mount Opening | 3.96 mm | 0.156 in | -40 C | 105 ░C | Green | 1 | 18 | 1 | ||||||
 EDAC Inc. | Polyester Thermoplastic | 0.25 Ám | 10 Áin | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 18 | Female | Wire Wrap | Gold | Through Hole | Copper Alloy | Cantilever | Floating Bobbin Top Mount Opening | 3.96 mm | 0.156 in | -40 C | 105 ░C | Green | 1 | 18 | 1 | 0.116 " | 2.95 mm | ||||

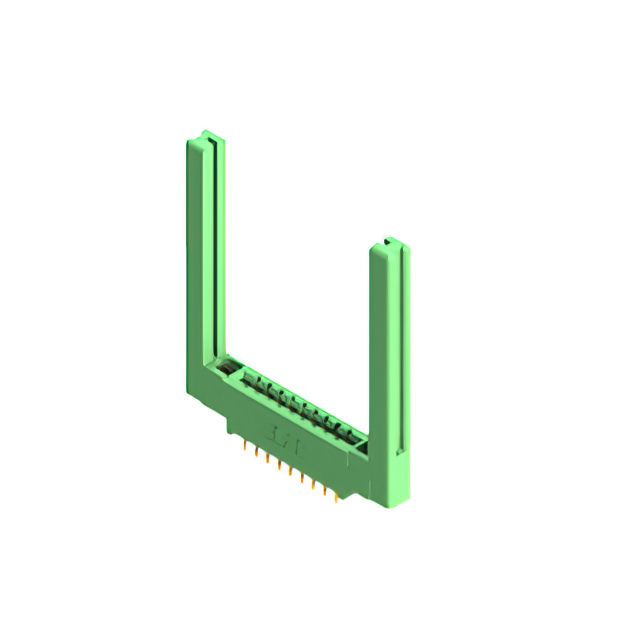

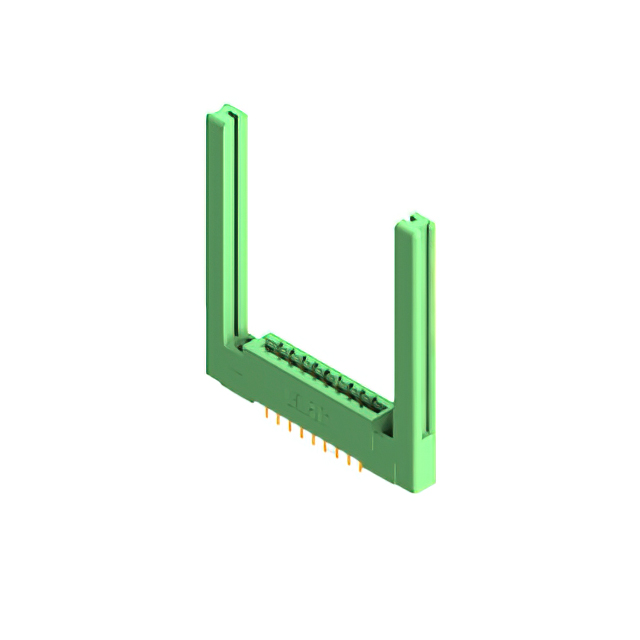

 EDAC Inc. | Polyester Thermoplastic | 2 | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | 9 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 18 | Female | Card Extender | Solder Eyelet(s) | Gold | Board Edge Straddle Mount | Copper Alloy | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | 3.96 mm | 0.156 in | 2 | -40 C | 105 ░C | Green | |||||
 EDAC Inc. | Polyester Thermoplastic | 0.25 Ám | 10 Áin | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 18 | Female | Solder | Gold | Through Hole | Copper Alloy | Cantilever | Floating Bobbin Top Mount Opening | 3.96 mm | 0.156 in | -40 C | 105 ░C | Green | 1 | 18 | 1 | 0.116 " | 2.95 mm | ||||
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | 9 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 18 | Female | Wire Wrap | Gold | Right Angle Through Hole | Copper Alloy | Cantilever | 3.96 mm | 0.156 in | 2 | -40 C | 105 ░C | Green | 0.156 " | 3.96 mm | |||||
 EDAC Inc. | Polyester Thermoplastic | 0.25 Ám | 10 Áin | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 18 | Female | Solder | Gold | Through Hole | Copper Alloy | Cantilever | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 in | -40 C | 105 ░C | Green | 1 | 18 | 1 | 0.128 " | 3.25 mm | ||||
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | 9 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 18 | Female | Wire Wrap | Gold | Right Angle Through Hole | Copper Alloy | Cantilever | 4-40 Threaded Insert Top Mount Opening | 3.96 mm | 0.156 in | 2 | -40 C | 105 ░C | Green | ||||||
 EDAC Inc. | Polyester Thermoplastic | 0.25 Ám | 10 Áin | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 18 | Female | Solder | Gold | Through Hole | Copper Alloy | Cantilever | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 in | -40 C | 105 ░C | Green | 1 | 18 | 1 | 0.156 " | 3.96 mm |
