MHS1 Series

Catalog

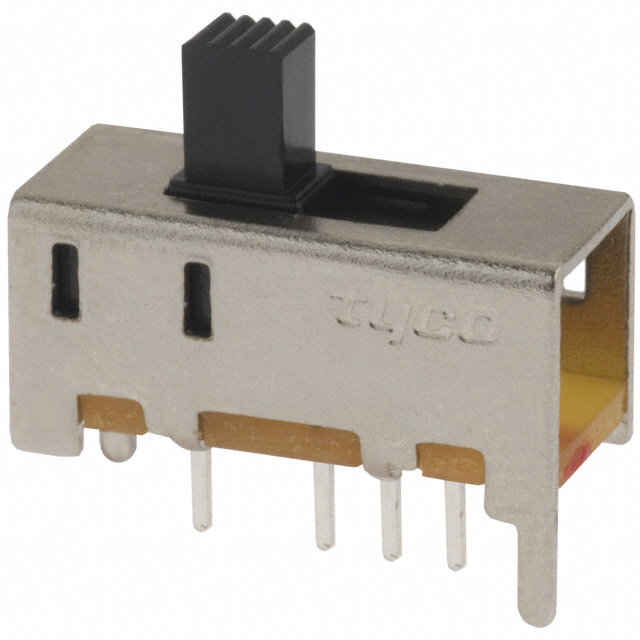

SWITCH SLIDE SP3T 0.4VA 20V

Part	Mechanical Life	Actuator Material	Switch Travel	Operating Force	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Features	Contact Finish	Contact Material	Actuator Type	Contact Timing	Switch Function	Termination Style	Actuator Length [x]	Voltage Rating - DC	Current Rating (Amps)	Mounting Type	Circuit	Voltage Rating - AC
TE Connectivity AMP Connectors MHS133GRA	15000 Cycles	Polyoxymethylene (Acetal) (POM)	2 mm	600 gf	15000 Cycles	85 °C	-20 ░C	Epoxy Sealed Terminals	Gold	Copper Alloy	Standard	Shorting (MBB)	On-On-On	PC Pin	4.5 mm	20 V	0.4 VA	Right Angle Through Hole	SP3T	20 V
TE Connectivity AMP Connectors MHS133	15000 Cycles	Polyoxymethylene (Acetal) (POM)	2 mm	600 gf	15000 Cycles	85 °C	-20 ░C	Epoxy Sealed Terminals	Silver	Copper Alloy	Standard	Shorting (MBB)	On-On-On	PC Pin	4.5 mm		300 mA	Through Hole	SP3T	125 V
TE Connectivity AMP Connectors MHS133G	15000 Cycles	Polyoxymethylene (Acetal) (POM)	2 mm	600 gf	15000 Cycles	85 °C	-20 ░C	Epoxy Sealed Terminals	Gold	Copper Alloy	Standard	Shorting (MBB)	On-On-On	PC Pin	4.5 mm	20 V	0.4 VA	Through Hole	SP3T	20 V
TE Connectivity AMP Connectors MHS123K	15000 Cycles	Aluminum	2 mm	600 gf	15000 Cycles	85 °C	-20 ░C	Epoxy Sealed Terminals	Silver	Copper Alloy	Baton	Shorting (MBB)	On-Off-On	PC Pin	10 mm		300 mA	Through Hole	SPDT	125 V
TE Connectivity AMP Connectors MHS123	15000 Cycles	Polyoxymethylene (Acetal) (POM)	2 mm	600 gf	15000 Cycles	85 °C	-20 ░C	Epoxy Sealed Terminals	Silver	Copper Alloy	Standard	Shorting (MBB)	On-Off-On	PC Pin	4.5 mm		300 mA	Through Hole	SPDT	125 V
