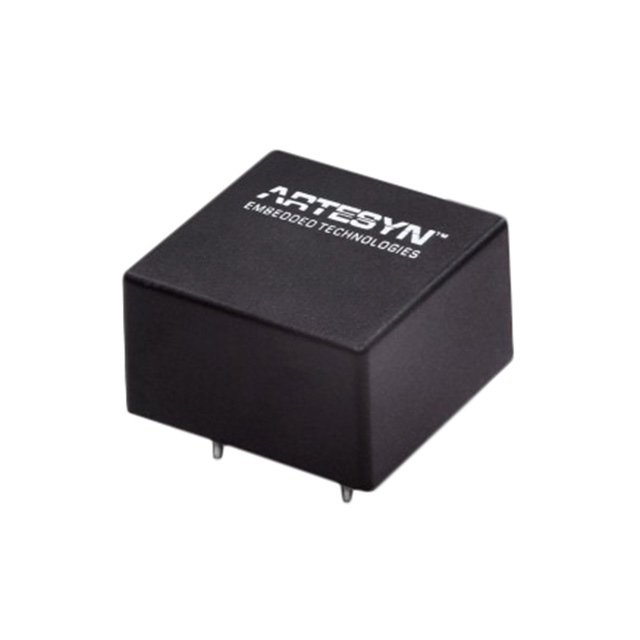

AYA00AA Series
Manufacturer: ARTESYN / Advanced Energy
Beta
⌘K
DC DC CONVERTER +/-5V 2W
| Part | Package / Case | Features | Type | Voltage - Input (Min) [Min] | Applications | Voltage - Input (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Output 2 | Voltage - Isolation | Voltage - Output 1 | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Mounting Type | Efficiency | Number of Outputs | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ARTESYN / Advanced Energy | 7-DIP Module 5 Leads | OCP SCP | Isolated Module | 18 V | ITE (Commercial) | 36 V | -40 °C | 85 °C | -5 V | 1.5 kV | 5 V | 0.31 " | 14 mm | 14 mm | 0.55 " | 0.55 in | 8 mm | Through Hole | 84 % | 2 | 2 W |
ARTESYN / Advanced Energy | 7-DIP Module 5 Leads | OCP SCP | Isolated Module | 36 V | ITE (Commercial) | 75 V | -40 °C | 85 °C | -5 V | 1.5 kV | 5 V | 0.31 " | 14 mm | 14 mm | 0.55 " | 0.55 in | 8 mm | Through Hole | 2 | 2 W |
