ADJ131 Series

Catalog

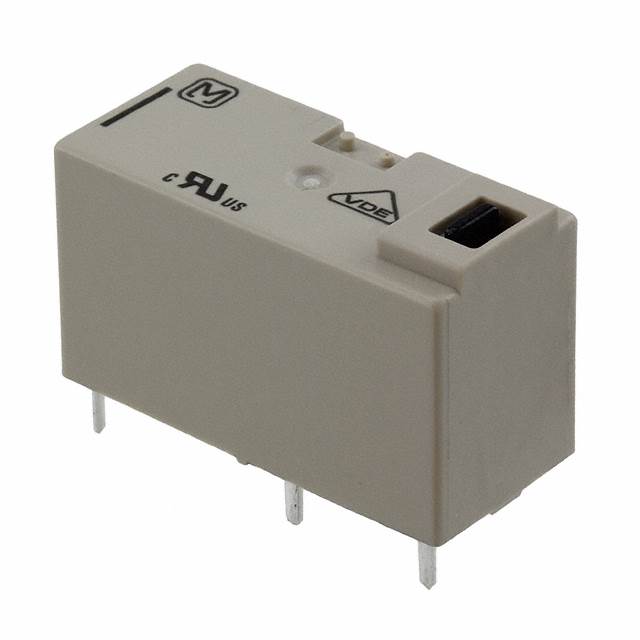

RELAY GEN PURPOSE SPDT 16A 6V

Part	Coil Resistance	Coil Current	Load - Max Switching [Max]	Relay Type	Termination Style	Release Time	Contact Rating (Current)	Seal Rating	Mounting Type	Approval Agency	Switching Voltage [Max]	Contact Form	Coil Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Operate Time	Must Operate Voltage	Contact Material	Coil Voltage
Panasonic Electronic Components ADJ13106	144 Ohms	41.7 mA	4000 VA	General Purpose	PC Pin	20 ms	16 A	Sealed - Flux Protection	Through Hole	CQC cURus VDE	250 VAC	SPDT (1 Form C)	Dual Coil Latching	70 °C	-40 C	Test Button	20 ms	4.2 VDC	Silver Tin Oxide (AgSnO)
Panasonic Electronic Components ADJ13124	2.3 kOhms	10.4 mA	4000 VA	General Purpose	PC Pin	20 ms	16 A	Sealed - Flux Protection	Through Hole	CQC cURus VDE	250 VAC	SPDT (1 Form C)	Dual Coil Latching	70 °C	-40 C	Test Button	20 ms	16.8 VDC	Silver Tin Oxide (AgSnO)	24 VDC

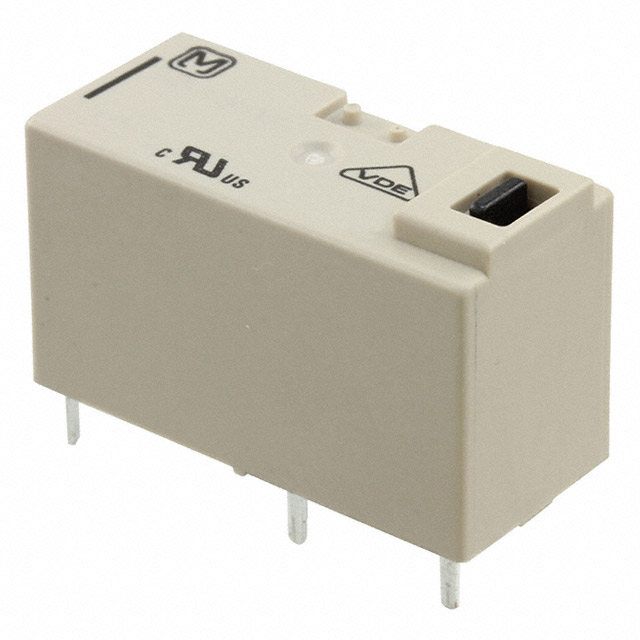

Panasonic Electronic Components ADJ13112	576 Ohms	20.8 mA	4000 VA	General Purpose	PC Pin	20 ms	16 A	Sealed - Flux Protection	Through Hole	CQC cURus VDE	250 VAC	SPDT (1 Form C)	Dual Coil Latching	70 °C	-40 C	Test Button	20 ms	8.4 VDC	Silver Tin Oxide (AgSnO)	12 VDC
