SX1272 Series
Manufacturer: Semtech Corporation
Beta
⌘K
RF TRANSCEIVER, 860MHZ TO 1.02GHZ, (G)FSK, GMSK, MSK, OOK, 20DBM OUT/137DBM IN, 1.8V TO 3.7V, QFN-28
| Part | RF Family/Standard | Sensitivity | Protocol | GPIO | Serial Interfaces | Power - Output | Data Rate (Max) | Supplier Device Package | Voltage - Supply [Min] | Voltage - Supply [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Current - Transmitting [Min] | Current - Transmitting [Max] | Frequency [Max] | Frequency [Min] | Package / Case | Type | Mounting Type | Modulation | Current - Receiving [Min] | Current - Receiving [Max] | Antenna Type | Current - Transmitting | Current - Receiving | For Use With/Related Products | Supplied Contents | Contents | Frequency | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Semtech Corporation | 802.15.4 | -137 dBm | LoRa™ | 6 | SPI | 20 dBm | 300 kbps | 28-QFN (6x6) | 1.8 V | 3.7 V | 85 °C | -40 C | 18 mA | 125 mA | 1.02 GHz | 860 MHz | 28-VQFN Exposed Pad | TxRx Only | Surface Mount | FSK GFSK GMSK MSK OOK | 10.5 mA | 11.2 mA | ||||||||
 Semtech Corporation | General ISM < 1GHz | -137 dBm | SPI | 20 dBm | 1.8 V | 3.7 V | 85 °C | -40 C | 1.02 GHz | 860 MHz | Module | Through Hole | FSK GFSK GMSK MSK OOK | Antenna Not Included U.FL | 125 mA | 11.2 mA | ||||||||||||||

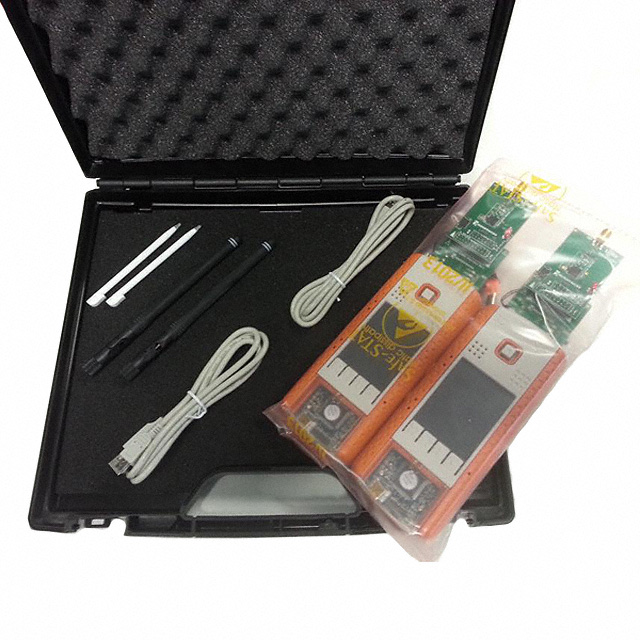

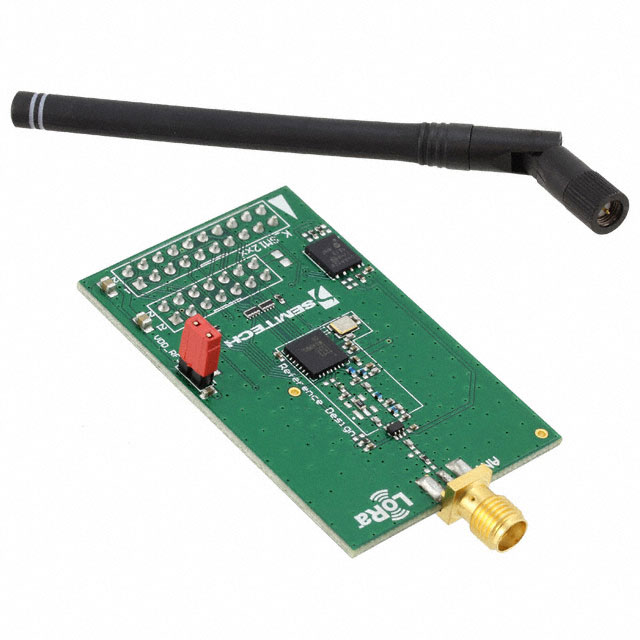

 Semtech Corporation | Transceiver; LoRa® | SX1272 | Board(s) Cable(s) | Board Cable | 915 MHz | SX1272 |
