9051-9513 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

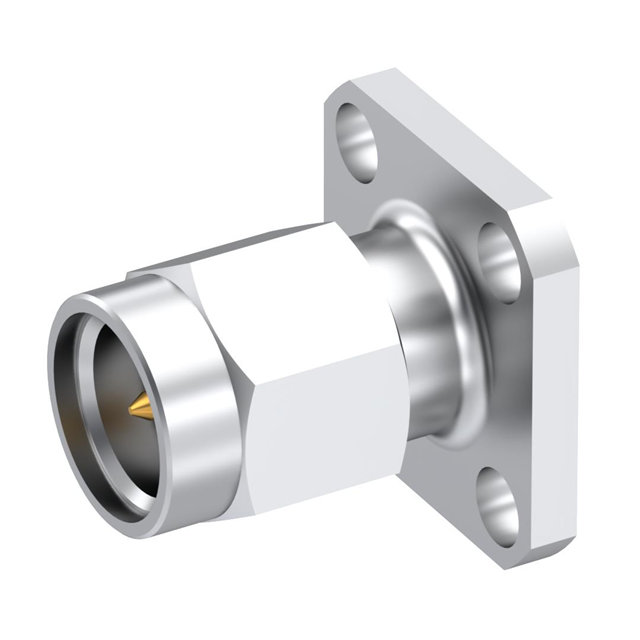

SMA / STRAIGHT PLUG MALE PASSIVA
| Part | Center Contact Plating | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Dielectric Material | Voltage Rating | Fastening Type | Connector Style | Frequency - Max [Max] | Number of Ports | Mounting Type | Housing Color | Connector Type | Mounting Feature | Impedance | Shield Termination | Contact Termination | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | Stainless Steel | -65 ░C | 165 °C | 500 | Polytetrafluoroethylene (PTFE) | 335 V | Threaded | SMA | 26 GHz | 1 | Panel Mount | Silver | Plug Male Pin | Flange | 50 Ohms | Screw | Compression | Beryllium Copper |
