Schaffner FN3310 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

LINE FILTER 520VAC 250A CHASSIS

Part	Current	Frequency - Operating	Voltage - Rated AC (Phase to Phase)	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Configuration	Filter Type	Termination Style	Voltage - Rated AC	Mounting Type	Approval Agency	Voltage - Rated AC (Phase to Ground/Neutral)
TE Connectivity AMP Connectors FN3310-250-99-R5	250 A	60 Hz	520 V	-40 C	100 °C	General Purpose	Single Stage	Three Phase (Delta)	Terminal Post	520 V	Chassis Mount	CE cURus ENEC
TE Connectivity AMP Connectors FN3310-2300-99-R5	2.3 kA	60 Hz	520 V	-40 C	100 °C	General Purpose	Single Stage	Three Phase (Delta)	Terminal Post	520 V	Chassis Mount	CE cURus ENEC
TE Connectivity AMP Connectors FN3310-1500-99-R5	1500 A	60 Hz	520 V	-40 C	100 °C	General Purpose	Single Stage	Three Phase (Delta)	Terminal Post	520 V	Chassis Mount	CE cURus ENEC
TE Connectivity AMP Connectors FN3310-600-99-R5	600 A	60 Hz	520 V	-40 C	100 °C	General Purpose	Single Stage	Three Phase (Delta)	Terminal Post	520 V	Chassis Mount	CE cURus ENEC
TE Connectivity AMP Connectors FN3310-400-99-R5	400 A	60 Hz	520 V	-40 C	100 °C	General Purpose	Single Stage	Three Phase (Delta)	Terminal Post	520 V	Chassis Mount	CE cURus ENEC
TE Connectivity AMP Connectors FN3310-400-99-R5	400 A	60 Hz	520 V	-40 C	100 °C	General Purpose	Single Stage	Three Phase (Delta)	Terminal Post	520 V	Chassis Mount	CE cURus ENEC
TE Connectivity AMP Connectors FN3310-250-99-R5	250 A	60 Hz	520 V	-40 C	100 °C	General Purpose	Single Stage	Three Phase (Delta)	Terminal Post	520 V	Chassis Mount	CE cURus ENEC
TE Connectivity AMP Connectors FN3310-1000-99-R5	1 kA	60 Hz	520 V	-40 C	100 °C	General Purpose	Single Stage	Three Phase (Delta)	Terminal Post	520 V	Chassis Mount	CE cURus ENEC
TE Connectivity AMP Connectors FN3310-1500-99-R5	1500 A	60 Hz	520 V	-40 C	100 °C	General Purpose	Single Stage	Three Phase (Delta)	Terminal Post	520 V	Chassis Mount	CE cURus ENEC

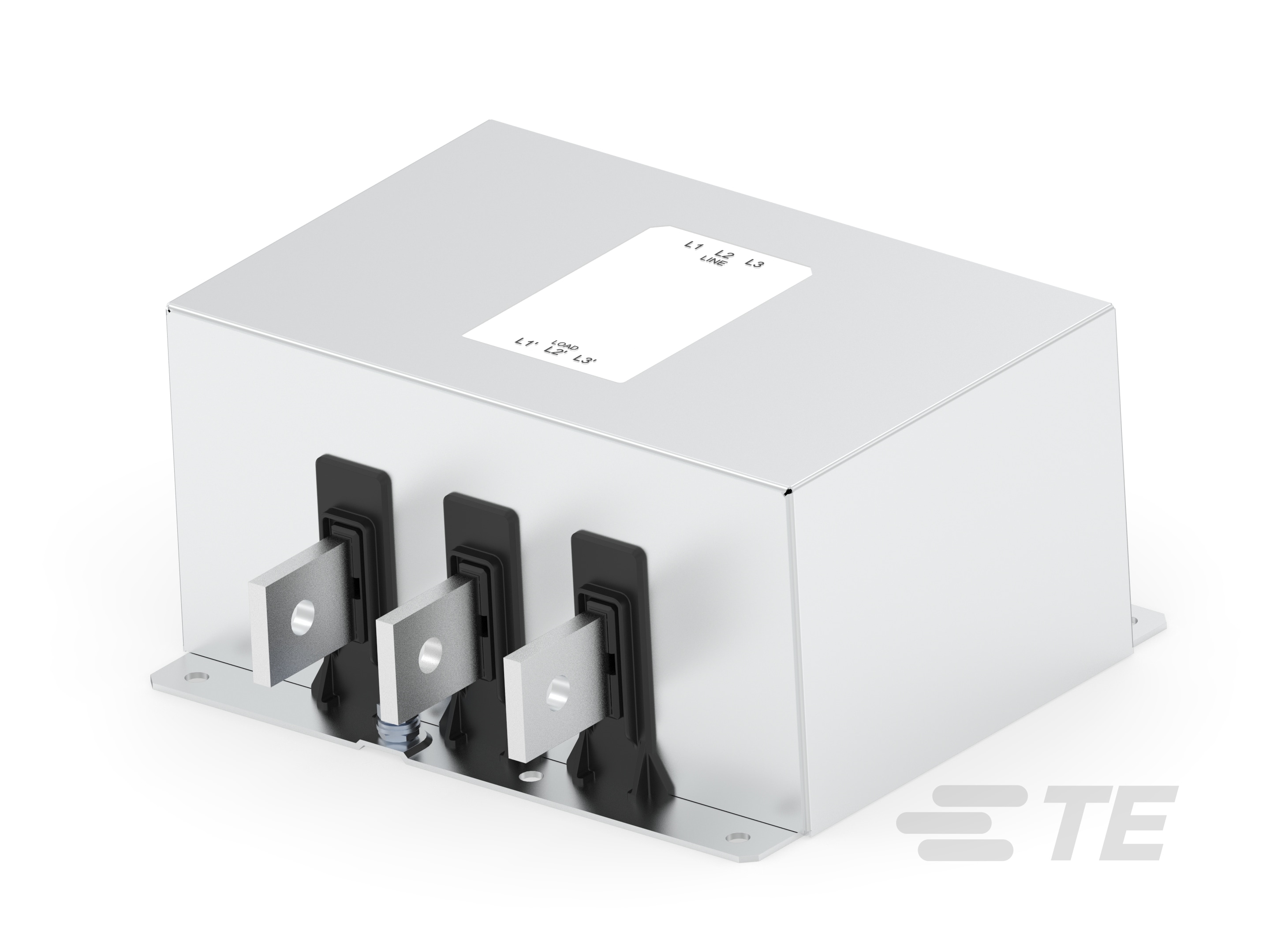

TE Connectivity AMP Connectors FN3310HV-1000-99-R5	1 kA	60 Hz	760 V	-40 C	100 °C	Inverters Power Drive Systems	Single Stage	Three Phase (Delta)	Terminal Post		Chassis Mount	CE cURus ENEC UKCA	440 V
