R14305 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

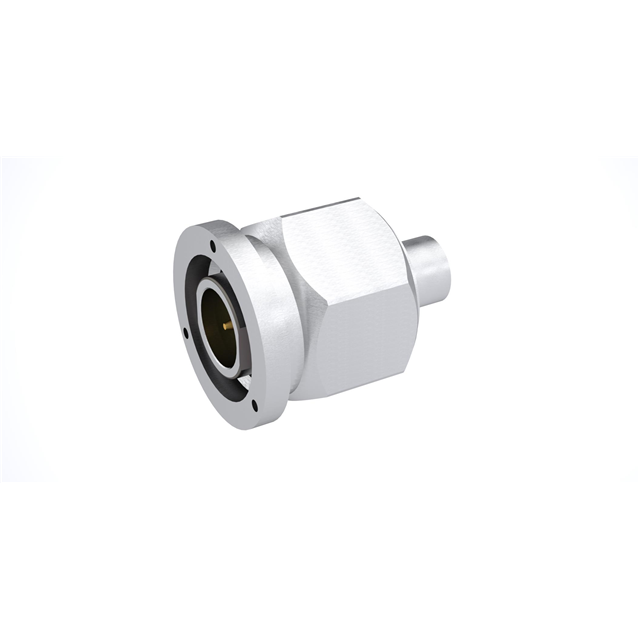

TNC 18 / STRAIGHT PLUG SOLDER TY
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Mating Cycles | Body Material | Voltage Rating | Dielectric Material | Center Contact Plating | Insertion Loss | Shield Termination | Connector Style | Frequency - Max [Max] | Number of Ports | Impedance | Fastening Type | Housing Color | Center Contact Material | Connector Type | Contact Termination | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 105 ░C | -65 ░C | 500 | Stainless Steel | 1500 V | Polytetrafluoroethylene (PTFE) | Gold | 0.18 dB | Solder | TNC | 18 GHz | 1 | 50 Ohms | Threaded | Silver | Brass | Plug Male Pin | Solder | Free Hanging (In-Line) |
