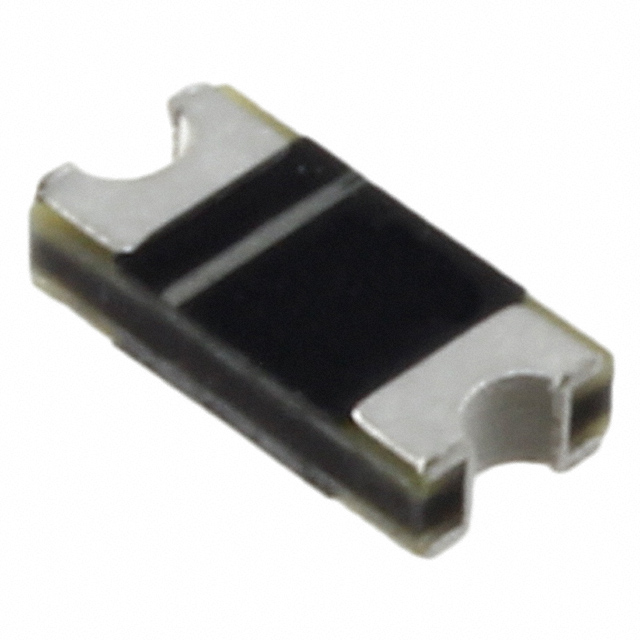

SD2010S Series

Catalog

DIODE SCHOTTKY 40V 3A 1206

Part	Current - Reverse Leakage @ Vr	Technology	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Mounting Type	Speed	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If [Max]
KYOCERA AVX SD2010S040L3R0	1 µA	Schottky	1206	420 mV	1206 (3216 Metric)	40 V	-55 °C	125 °C	Surface Mount	200 mA 500 ns	3 A
KYOCERA AVX SD2010S020S1R0	200 µA	Schottky	2010/DO-214AC		2-SMD No Lead	20 V	-55 °C	125 °C	Surface Mount	200 mA 500 ns	1 A	500 mV
KYOCERA AVX SD2010S040S2R0	200 µA	Schottky	2010/DO-214AC	500 mV	2-SMD No Lead	40 V	-55 °C	125 °C	Surface Mount	200 mA 500 ns	2 A
KYOCERA AVX SD2010S040S1R0	200 µA	Schottky	2010/DO-214AC		2-SMD No Lead	40 V	-55 °C	125 °C	Surface Mount	200 mA 500 ns	1 A	500 mV
KYOCERA AVX SD2010S040S3R0	200 µA	Schottky	2010/DO-214AC	500 mV	2-SMD No Lead	40 V	-55 °C	125 °C	Surface Mount	200 mA 500 ns	3 A
KYOCERA AVX SD2010S100S1R0	200 µA	Schottky	2010/DO-214AC		2-SMD No Lead	100 V	-55 °C	125 °C	Surface Mount	200 mA 500 ns	1 A	850 mV
