Power Inductors - SMD 1.5uH 16A 4mm 20% Low Prof
Power Inductors - SMD 1.5uH 16A 4mm 20% Low Prof
| Part | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Type | Tolerance | Mounting Type | Height - Seated (Max) | Height - Seated (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Inductance | Package / Case | Current - Saturation (Isat) | Shielding | Inductance Frequency - Test | DC Resistance (DCR) [Max] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

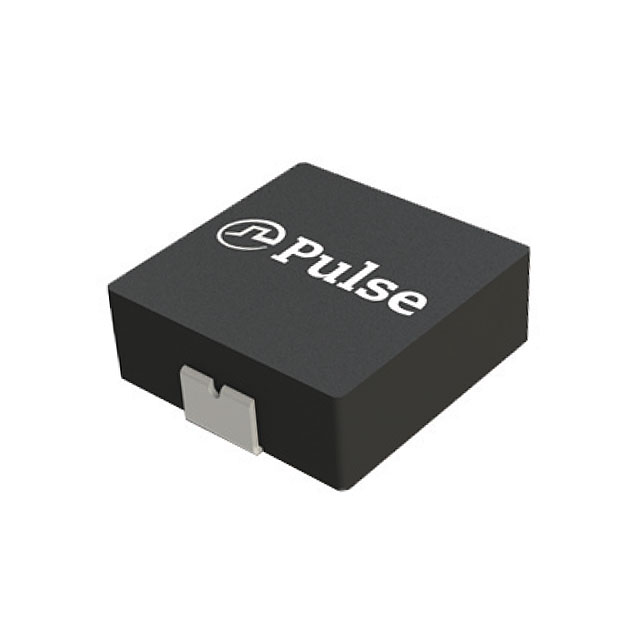

 Pulse Electronics | 11.5 mm | 0.453 " | 0.406 in | 10.3 mm | Molded | 20 % | Surface Mount | 4 mm | 0.157 in | 125 °C | -40 C | 1.5 µH | Nonstandard | 33 A | Shielded | 100 kHz | 4.6 mOhm | 16 A |
