2.92 mm Series

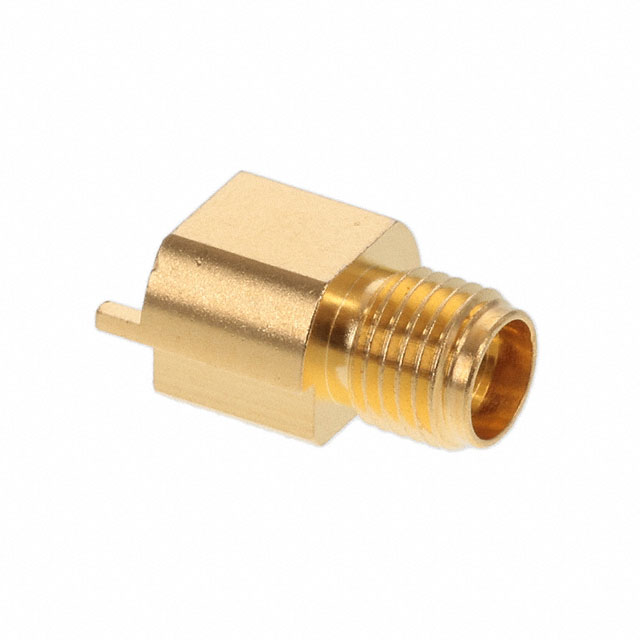

RF Connectors / Coaxial Connectors 2.92 Conn Recpt Female Socket
Manufacturer: TE Connectivity Raychem Cable Protection
Catalog
RF Connectors / Coaxial Connectors 2.92 Conn Recpt Female Socket
RF Connectors / Coaxial Connectors 2.92 Conn Recpt Female Socket
RF Connectors / Coaxial Connectors 2.92 Conn Recpt Female Socket
RF Connectors / Coaxial Connectors 2.92 Conn Recpt Female Socket
| Part | Number of Ports | Center Contact Plating | Body Finish | Contact Termination | Center Contact Material | Connector Style | Connector Type | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Impedance | Housing Color | Shield Termination | Dielectric Material | Frequency - Max [Max] | Voltage Rating | Mating Cycles | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 1 | Gold | Gold | Solder | Beryllium Copper | 2.92 mm | Female Socket Jack | Brass | -55 °C | 125 °C | 50 Ohms | Gold | Solder | Polyetherimide (PEI) | 40 GHz | 250 VDC | 500 | Board Edge Cutout Surface Mount |
