Optical Switches, Reflective, Phototransistor Output Reflective Object Sensor high temperature w/ 12" wires
Optical Switches, Reflective, Phototransistor Output Reflective Object Sensor high temperature w/ 12" wires
Optical Switches, Reflective, Phototransistor Output Reflective Object Sensor high temperature w/ 12" wires
| Part | Response Time | Voltage - Collector Emitter Breakdown (Max) [Max] | Package / Case | Sensing Distance | Sensing Distance | Output Type | Current - DC Forward (If) (Max) [Max] | Current - Collector (Ic) (Max) [Max] | Sensing Method | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|

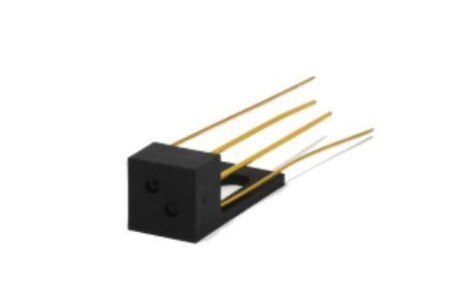

 TT Electronics/BI | 15 µs | 30 V | PCB Mount | 0.5 in | 12.7 mm | Phototransistor | 75 mA | 30 mA | Reflective | Through Hole |

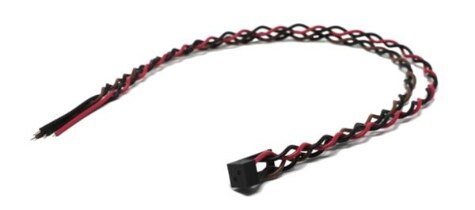

 TT Electronics/BI | 250 µs | 15 V | Module Pre-Wired | 0.5 in | 12.7 mm | Photodarlington | 75 mA | 30 mA | Reflective | Chassis Mount |
 TT Electronics/BI | 15 µs | 30 V | PCB Mount | 0.5 in | 12.7 mm | Phototransistor | 75 mA | 30 mA | Reflective | Through Hole |
TT Electronics/BI | 250 µs | 15 V | PCB Mount | 0.5 in | 12.7 mm | Photodarlington | 75 mA | 30 mA | Reflective | Through Hole |
