861-008 Series
Manufacturer: NorComp Inc.
Beta
⌘K
CONN RCPT MALE 8POS GOLD SOLDER
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Shell Material | Voltage Rating | Current Rating (Amps) | Applications | Insert Material | Features | Contact Finish - Mating | Shielding | Number of Positions | Material Flammability Rating | Primary Material | Fastening Type | Connector Type | Shell Finish | Ingress Protection | Contact Finish Thickness - Mating | Orientation | Shell Size - Insert | Contact Material | Termination | Color | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

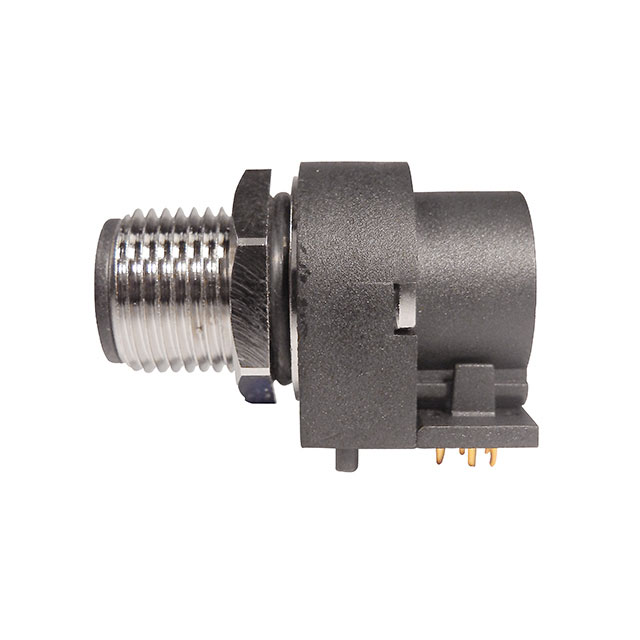

 NorComp Inc. | 85 °C | -40 C | Brass | 30 VDC | 2 A | Industrial Medical | Polybutylene Terephthalate (PBT) | Board Guide | Gold | Shielded | 8 | UL94 V-0 | Metal | Threaded | Receptacle Male Pins | Nickel | IP67 - Dust Tight Waterproof | Flash | A | M12-8 | Brass | Solder | Black Silver | Panel Mount Right Angle Through Hole | ||

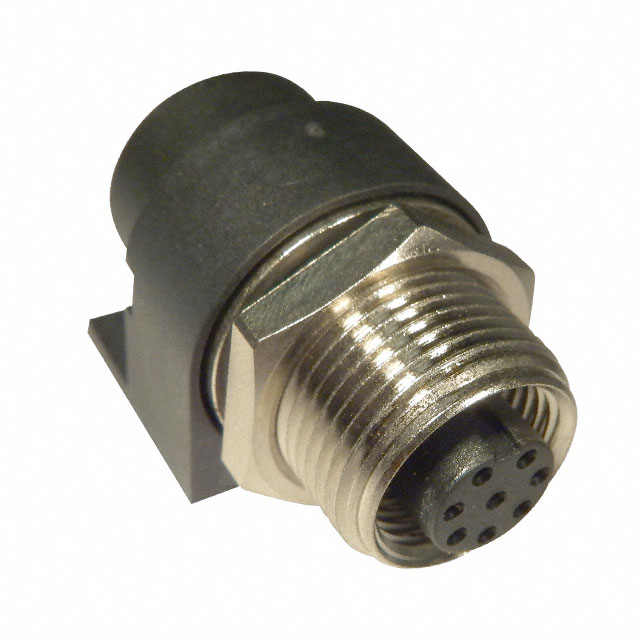

 NorComp Inc. | 85 °C | -40 C | Brass | 30 VDC | 2 A | Industrial Medical | Polybutylene Terephthalate (PBT) | Board Guide | Gold | Shielded | 8 | UL94 V-0 | Metal | Threaded | Plug Female Sockets | Nickel | IP67 - Dust Tight Waterproof | A | M12-8 | Brass | Solder | Black Silver | Panel Mount Right Angle Through Hole | 0.25 µm | 10 µin |
