MLZ Series

Catalog

INDUCTOR, AEC-Q200, 4.7UH, 0805 ROHS COMPLIANT: YES

Part	DC Resistance (DCR)	Current Rating (Amps)	Type	Shielding	Supplier Device Package	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current - Saturation (Isat)	Mounting Type	Inductance Frequency - Test	Tolerance	Material - Core	Ratings	Package / Case	Inductance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Package / Case	Frequency - Self Resonant

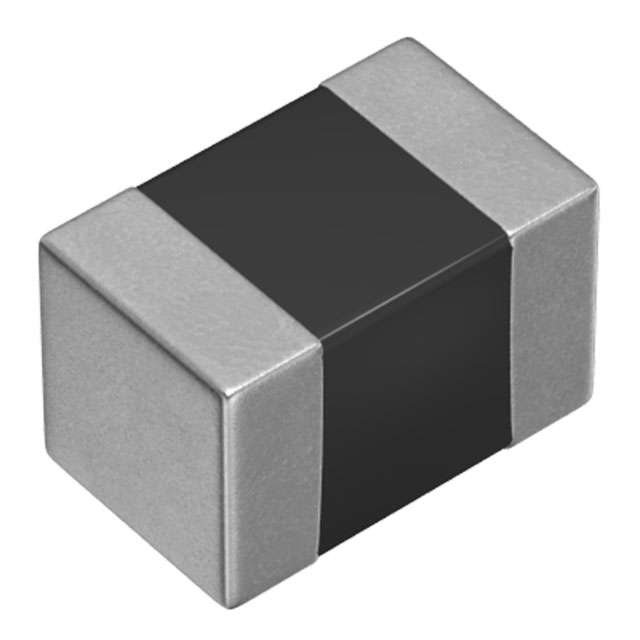

TDK Corporation MLZ2012M4R7WTD25	300 mOhm	0.5 A	Multilayer	Shielded	0805 (2012 Metric)	2 mm	1.25 mm	0.049 "	0.079 in	180 mA	Surface Mount	2 MHz	20 %	Ferrite	AEC-Q200	0805	4.7 ÁH	0.057 in	1.45 mm	-55 C	125 °C

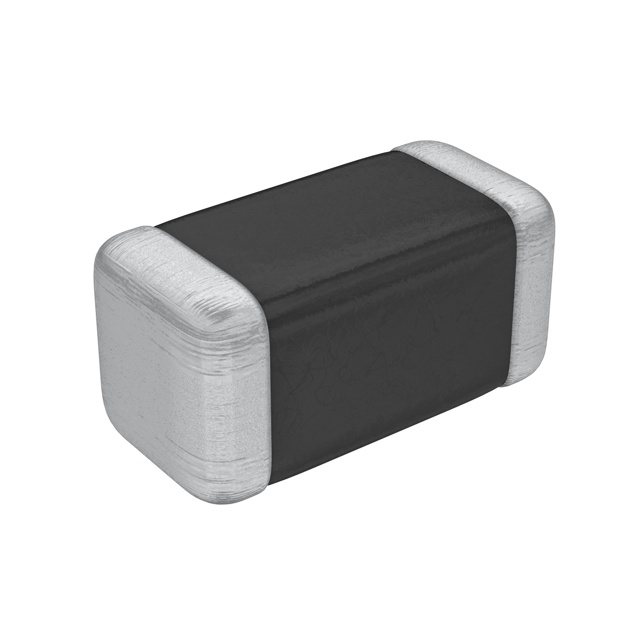

TDK Corporation MLZ1608N1R5LTD25	140 mOhm	600 mA	Multilayer	Shielded		1.6 mm		0.031 in	0.063 "	130 mA	Surface Mount	2 MHz	20 %	Ferrite	AEC-Q200	0603	1.5 µH	0.037 in	0.95 mm	-55 C	125 °C	0.8 mm	1608 Metric
TDK Corporation MLZ1608A1R5WTD25	210 mOhm	0.55 A	Multilayer	Shielded		1.6 mm		0.031 in	0.063 "	160 mA	Surface Mount	10 MHz	20 %	Ferrite	AEC-Q200	0603	1.5 µH	0.037 in	0.95 mm	-55 C	125 °C	0.8 mm	1608 Metric
TDK Corporation MLZ2012M3R3HTD25	200 mOhm	0.5 A	Multilayer	Shielded	0805 (2012 Metric)	2 mm	1.25 mm	0.049 "	0.079 in	350 mA	Surface Mount	2 MHz	20 %	Ferrite	AEC-Q200	0805	3.3 µH	0.057 in	1.45 mm	-55 C	125 °C
TDK Corporation MLZ1608N1R5LT000	140 mOhm	600 mA	Multilayer	Shielded		1.6 mm		0.031 in	0.063 "	130 mA	Surface Mount	2 MHz	20 %	Ferrite		0603	1.5 µH	0.037 in	0.95 mm	-55 C	125 °C	0.8 mm	1608 Metric
TDK Corporation MLZ2012A2R2MT000	260 mOhm	160 mA	Multilayer	Shielded	0805 (2012 Metric)	2 mm	1.25 mm	0.049 "	0.079 in	160 mA	Surface Mount	10 MHz	20 %	Ferrite		0805	2.2 µH			-55 C	125 °C			100 MHz
TDK Corporation MLZ2012M220WT000	2 Ohm	0.22 A	Multilayer	Shielded	0805 (2012 Metric)	2 mm	1.25 mm	0.049 "	0.079 in	60 mA	Surface Mount	2 MHz	20 %	Ferrite		0805	22 µH	0.057 in	1.45 mm	-55 C	125 °C
TDK Corporation MLZ2012N1R0LTD25	60 mOhm	1.15 A	Multilayer	Shielded	0805 (2012 Metric)	2 mm	1.25 mm	0.049 "	0.079 in	220 mA	Surface Mount	2 MHz	20 %	Ferrite	AEC-Q200	0805	1 µH			-55 C	125 °C
TDK Corporation MLZ1608A1R0WTD25	150 mOhm	600 mA	Multilayer	Shielded	0603 (1608 Metric)	1.6 mm		0.031 in	0.063 "	190 mA	Surface Mount	10 MHz	20 %	Ferrite	AEC-Q200	0603	1 µH	0.037 in	0.95 mm	-55 C	125 °C	0.8 mm	1608 Metric
