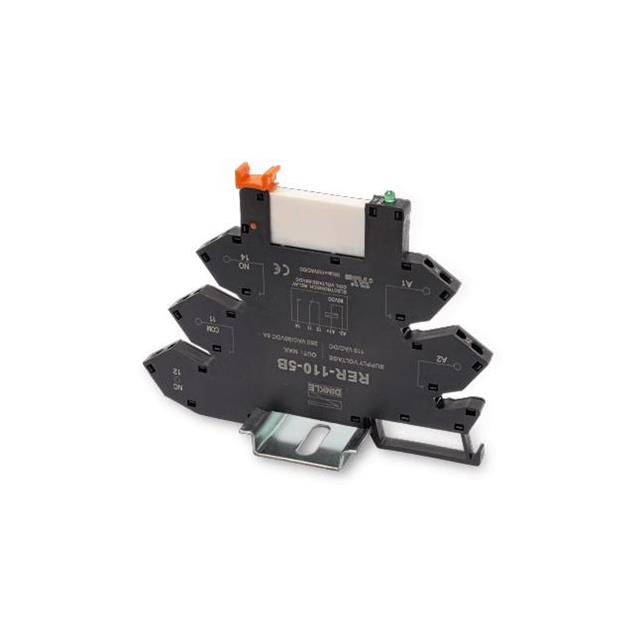

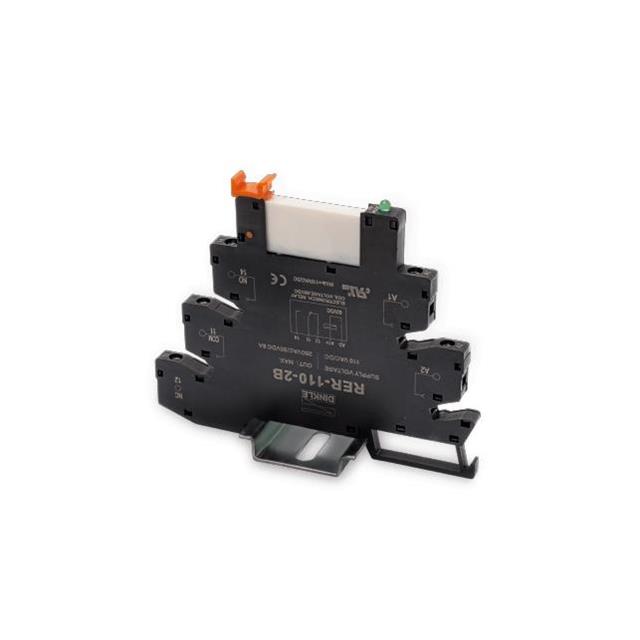

RER-110 Series
Manufacturer: Dinkle Corporation, USA
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
RELAY GEN PURPOSE SPDT 6A 60V
| Part | Coil Resistance | Operating Temperature (Min) | Operating Temperature (Max) | Coil Current | Contact Material | Coil Voltage (Type) | Coil Voltage | Features | Relay Type | Contact Rating (Current) | Switching Voltage AC (Max) | Switching Voltage DC (Max) | Operate Time | Contact Form | Release Time | Coil Type | Termination Style | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Dinkle Corporation, USA | 32.353 kOhms | -40 °C | 85 °C | 3.4 mA | Silver Nickel (AgNi) | AC DC | 110 V | Lighted Indicator Surge Protection | General Purpose | 6 A | 250 VAC | 30 VDC | 8 ms | 1 C Form SPDT | 4 ms | Non Latching | Spring Terminal | DIN Rail |
 Dinkle Corporation, USA | 32.353 kOhms | -40 °C | 85 °C | 3.4 mA | Silver Nickel (AgNi) | AC DC | 110 V | Lighted Indicator Surge Protection | General Purpose | 6 A | 250 VAC | 30 VDC | 8 ms | 1 C Form SPDT | 4 ms | Non Latching | Screw Terminal | DIN Rail |
