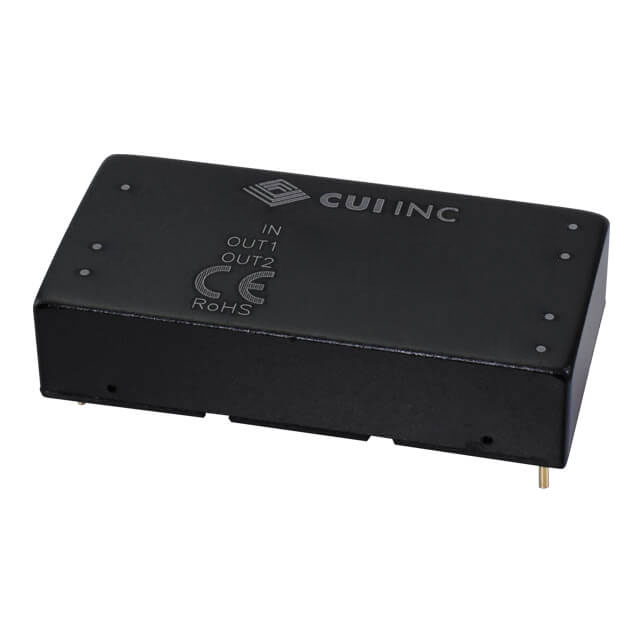

PQF20W Series
Manufacturer: CUI Inc.
Beta
⌘K
DC DC CONVERTER 5V 5V 20W
| Part | Mounting Type | Voltage - Input (Min) [Min] | Applications | Efficiency | Power (Watts) | Voltage - Isolation | Voltage - Output 1 | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Voltage - Output 2 | Package / Case | Voltage - Input (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Approval Agency | Type | Current - Output (Max) [Max] | Current - Output (Max) | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | Through Hole | 18 V | ITE (Commercial) | 84 % | 20 W | 3000 V | 5 V | 2 in | 1 " | 50.8 mm | 25.4 mm | 0.46 in | 11.8 mm | 5 V | 8-DIP Module 7 Leads | 75 V | 105 C | -40 °C | 2 | CE | Isolated Module | 2 A | ||
CUI Inc. | Through Hole | 18 V | ITE (Commercial) | 84 % | 20 W | 3000 V | 5 V | 2 in | 1 " | 50.8 mm | 25.4 mm | 0.46 in | 11.8 mm | 12 V | 8-DIP Module 7 Leads | 75 V | 105 C | -40 °C | 2 | CE | Isolated Module | 2 A | 833 mA |
