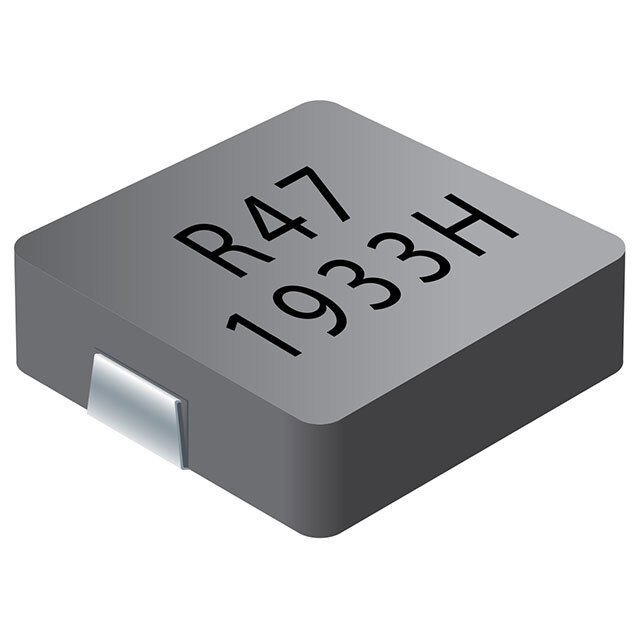

SRP1245C Series
Manufacturer: Bourns Inc.
Beta
⌘K
POWER INDUCTORS - SMD IND,13.5X12.6X4.7MM,6.8UH+/-20%,12A,SHD
| Part | Mounting Type | Frequency - Self Resonant | Current Rating (Amps) | Package / Case | Shielding | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Inductance Frequency - Test | Tolerance | DC Resistance (DCR) [Max] | Current - Saturation (Isat) | Operating Temperature [Max] | Operating Temperature [Min] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Q @ Freq | Material - Core | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Surface Mount | 16 MHz | 12 Amps | Nonstandard | Shielded | 0.531 in | 12.6 mm | 0.496 in | 13.5 mm | 100 kHz | 20 % | 16.7 mOhm | 23 A | 125 °C | -40 C | 0.197 in | 5 mm | 20 100 kHz | Metal | 6.8 µH |
