OAB13391 Series
Manufacturer: ORION FANS
Beta
⌘K

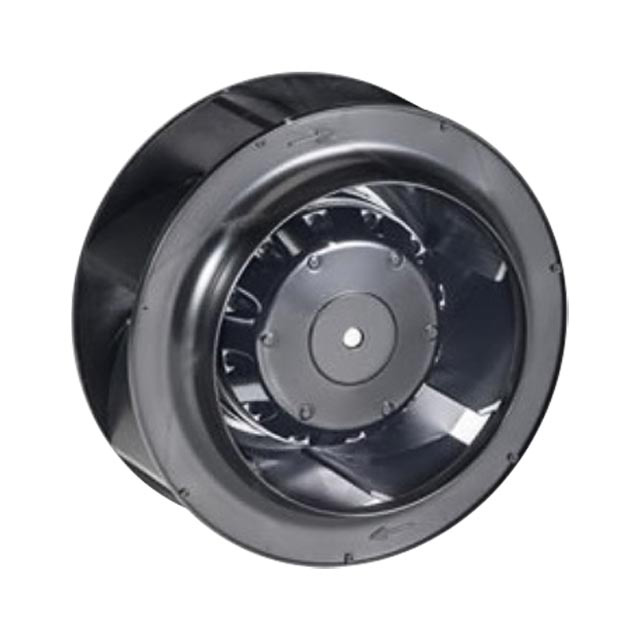

BLOWERS & CENTRIFUGAL FANS AC MOTORIZED IMPELLER - 230V 133 X 91MM
| Part | Material - Frame | Current Rating (Amps) | Lifetime @ Temp. | Material - Blade | Width [y] | Bearing Type | Noise | Ingress Protection | Size / Dimension [diameter] | Size / Dimension | RPM | Air Flow | Air Flow | Weight | Weight | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Features | Fan Type | Termination | Static Pressure | Static Pressure | Power (Watts) | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ORION FANS | Aluminum | 0.21 A | 40000 Hrs | Thermoplastic | 91.5 mm | Ball | 60 dB(A) | IP55 - Dust Protected Water Resistant | 133 mm | Round | 3200 RPM | 188 CFM | 5.26 m³/min | 2.7 lbs | 1.2 kg | 60 °C | -40 °C | 60 °C | -40 C | Thermal Overload Protector (TOP) | Motorized Impellers | 2 Wire Leads | 219.2 Pa | 0.88 in H2O | 39 W | 230 VAC |
ORION FANS | Aluminum | 430 mA | 40000 Hrs | Thermoplastic | 91.5 mm | Ball | 60 dB(A) | IP55 - Dust Protected Water Resistant | 133 mm | Round | 3200 RPM | 188 CFM | 5.26 m³/min | 2.7 lbs | 1.2 kg | 60 °C | -40 °C | 60 °C | -40 C | Thermal Overload Protector (TOP) | Motorized Impellers | 2 Wire Leads | 219.2 Pa | 0.88 in H2O | 41 W | 115 VAC |
