BCL Series
Manufacturer: TDK Corporation
Beta
⌘K

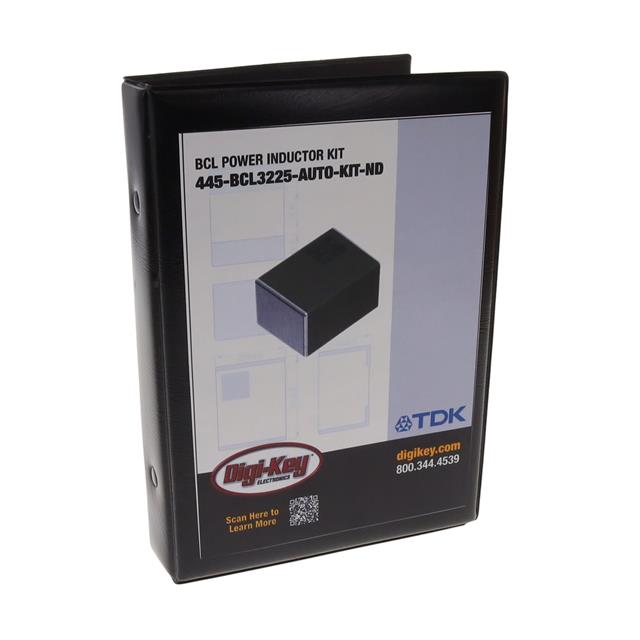

INDUCTOR KITS & ACCESSORIES WOUND METAL AUTOMOTIVE BCL POWER INDUCTOR SAMPLE KIT AEC-Q200
| Part | Kit Type | Qualification | Inductance Range [Min] | Inductance Range [Max] | Shielding | Style | Material - Core | Grade | Quantity | Packages Included | Packages Included | Mounting Type | Ratings | Inductance Frequency - Test | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Current - Saturation (Isat) | Inductance | Current Rating (Amps) | Tolerance | Package / Case | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | Fixed | AEC-Q200 | 2.2 µH | 100 µH | Shielded | Wirewound | Metal | Automotive | 90 Pieces | 1210 | 3225 Metric | Surface Mount | ||||||||||||||||||
 TDK Corporation | Shielded | Metal | Surface Mount | AEC-Q200 | 1 MHz | 2.5 mm | 0.098 in | 3.2 mm | 0.126 " | 1.33 A | 15 µH | 1.47 A | 20 % | 1210 | 3225 Metric | 155 C | -55 C | 1210 | 0.079 in | 2 mm | Drum Core Wirewound |
