XB5 Series

Catalog

MODULAR CONNECTOR, RJ45 PLUG, 1 X 1 (PORT), 8P8C, IP20, PANEL MOUNT

Part	Number of Rows	Number of Ports	Orientation	Termination	Number of Positions/Contacts	Connector Type	Tab Direction	Shielding	Mounting Type	Ingress Protection	LED Color	Electrical Life	Mechanical Life	Color - Actuator/Cap	Circuit	Current Rating (Amps)	Illumination Type, Color	Voltage Rating - AC	Illumination Voltage (Nominal)	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Type	Actuator Type	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Termination Style	Key Removable Positions	Contact Timing	Angle of Throw	Contact Material	Number of Positions	Illumination	Illumination Voltage (Nominal) [Min]	Illumination Voltage (Nominal) [Max]	Lens Color	Voltage	Lens Style	Current	Ratings	Panel Cutout Shape	Panel Cutout Dimensions	Panel Cutout Dimensions	Lens Size [diameter]
SCHNEIDER ELECTRIC XB5PRJ45	1	1	Straight	Solder	8p8c (RJ45 Ethernet)	Jack	Up	Unshielded	Panel Mount	IP20	Does Not Contain LED
SCHNEIDER ELECTRIC XB5AW36B5									Panel Mount Front	IP66 IP67 IP69 IP69K		1000000 Cycles	10000000 Cycles	Blue	DPST-NO/NC	6 A 550 mA	Blue LED	120 V	24 V	70 °C	-40 C	Off-On On-Off	Illuminated Standard	Button Flush Round	22 mm	125 VDC	Screw Terminal

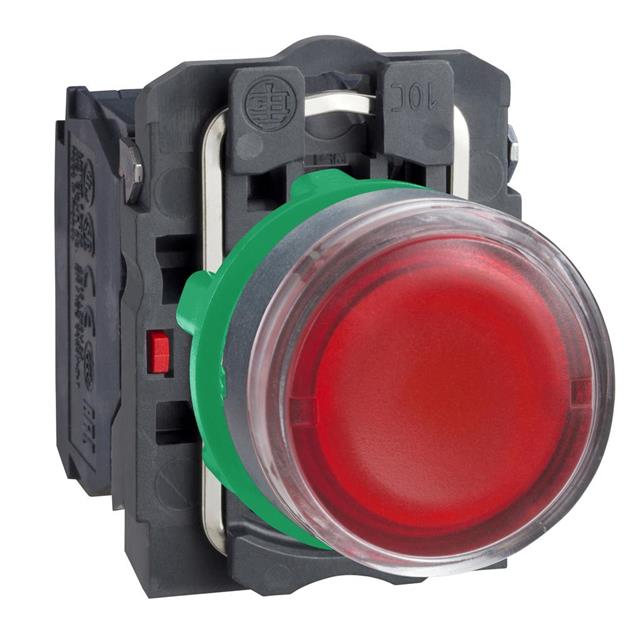

SCHNEIDER ELECTRIC XB5AW3465									Panel Mount Front	IP66 - Dust Tight Water Resistant		1000000 Cycles	10000000 Cycles	Red	DPST-NO/NC	6 A 550 mA	LED Red	120 V	250 VAC	70 °C	-40 C	Off-On On-Off	Illuminated Standard	Button Flush Round	22 mm	125 VDC	Screw Terminal
SCHNEIDER ELECTRIC XB5FG21									Panel Mount						SPST-NO	6 A 550 mA		120 V		70 °C	-40 C	Off-On		Flat Key	30 mm	125 VDC	Screw Terminal	Left and Right	Not Specified	90 °	Silver Alloy	2
SCHNEIDER ELECTRIC XB5FJ33									Panel Mount	IP66 IP67 IP69 IP69K					DPST-NO	6 A 550 mA		120 V		70 °C	-40 C	Off-On	Standard		30.5 mm	125 VDC	Screw Terminal						Non-Illuminated
SCHNEIDER ELECTRIC XB5AP51									Panel Mount Front	IP66 - Dust Tight Water Resistant				Yellow	SPST-NO	6 A 550 mA		120 V		70 °C	-40 C	Off-Mom	Standard	Button Round	22 mm	125 VDC	Screw Terminal
SCHNEIDER ELECTRIC XB5FG41									Panel Mount						SPST-NO	6 A 550 mA		120 V		70 °C	-40 C	Off-On		Flat Key	30 mm	125 VDC	Screw Terminal	Left and Right	Not Specified	90 °	Silver Alloy	2
SCHNEIDER ELECTRIC XB5AW3345									Panel Mount Front	IP66 - Dust Tight Water Resistant		1000000 Cycles	10000000 Cycles	Green	DPST-NO/NC	6 A 550 mA	Green LED	120 V		70 °C	-40 C	Off-On On-Off	Illuminated Standard	Button Flush Round	22 mm	125 VDC	Screw Terminal							220 VAC	240 VAC
SCHNEIDER ELECTRIC XB5AVB5										13 IP66 IP67 IP69 IP69K NEMA 4X													LED				Screw Terminal									Orange	24 V	Round with Convex Top	18 mA	AC/DC	Round	22 mm	0.87 in	30 mm
SCHNEIDER ELECTRIC XB5FA61									Panel Mount Front	IP66 IP67 IP69 IP69K		1000000 Cycles	10000000 Cycles	Blue	SPST-NO	6 A 550 mA		120 V		70 °C	-40 C	Off-On	Standard	Button Flush Round	30.5 mm	125 VDC	Screw Terminal
