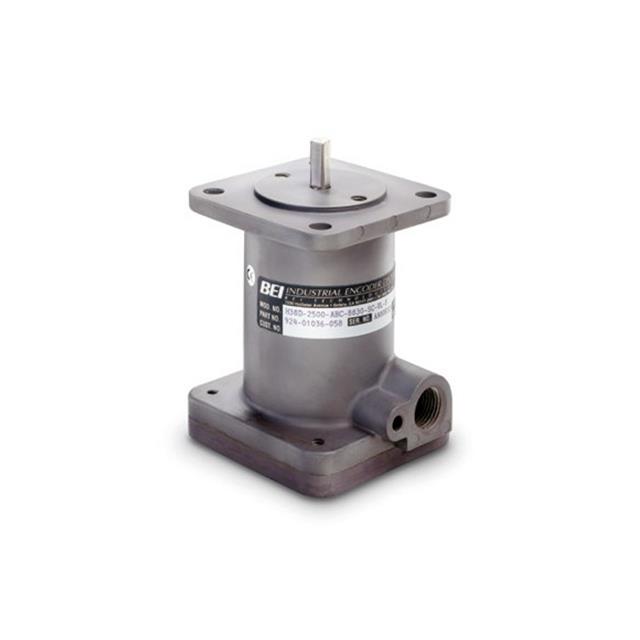

01036 Series

Catalog

ENCODER OPT QUAD TERMINAL BLOCK

Part	Termination Style	Rotational Life (Cycles Min)	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Actuator Type	Orientation	Detent	Pulses per Revolution	Mounting Type	Built in Switch	Output Type	Encoder Type	Pulses per Revolution
Sensata-BEI Encoders 01036-527	Straight - Push In Terminal Block	200 M	28 V	5 V	Shaft	User Selectable	No	500	Chassis Mount	No	Quadrature with Index (Incremental)	Optical
Sensata-BEI Encoders 01036-439	Straight - Push In Terminal Block	200 M	28 V	5 V	Shaft	User Selectable	No	250	Chassis Mount	No	Quadrature with Index (Incremental)	Optical
Sensata-BEI Encoders 01036-043	Straight - Push In Terminal Block		28 V	5 V	Shaft	User Selectable	No	1800	Chassis Mount	No	Quadrature with Index (Incremental)	Optical
Sensata-BEI Encoders 01036-265	Straight - Push In Terminal Block	200 M	28 V	5 V	Shaft	User Selectable	No	50	Chassis Mount	No	Quadrature with Index (Incremental)	Optical
Sensata-BEI Encoders 01036-043	Straight - Push In Terminal Block		28 V	5 V	Shaft	User Selectable	No	1800	Chassis Mount	No	Quadrature with Index (Incremental)	Optical
Sensata-BEI Encoders 01036-713	Straight - Push In Terminal Block	200 M	28 V	5 V	Shaft	User Selectable	No	3600	Chassis Mount	No	Quadrature with Index (Incremental)	Optical
Sensata-BEI Encoders 01036-701	Cable	200 M	28 V	5 V	Shaft	User Selectable	No	8192	Chassis Mount	No	Gray Code (Absolute)	Absolute
Sensata-BEI Encoders 01036-590	Straight - Push In Terminal Block	200 M	28 V	5 V	Shaft	User Selectable	No	2048	Chassis Mount	No	Quadrature with Index (Incremental)	Optical
Sensata-BEI Encoders 01036-656	Straight - Push In Terminal Block		28 V	5 V	Shaft	User Selectable	No		Chassis Mount	No	Quadrature (Analog)	Absolute	Programmable
Sensata-BEI Encoders 01036-519	Straight - Push In Terminal Block	200 M	28 V	5 V	Shaft	User Selectable	No	1800	Chassis Mount	No	Quadrature with Index (Incremental)	Optical
