TPS62560 Series
Manufacturer: Texas Instruments
Beta
⌘K
CONV DC-DC 2.5V TO 5.5V SYNCHRONOUS STEP DOWN SINGLE-OUT 0.85V TO 5.5V 0.6A 6-PIN WSON EP T/R
| Part | Voltage - Input (Min) [Min] | Frequency - Switching | Voltage - Output (Min/Fixed) | Topology | Voltage - Output (Max) [Max] | Number of Outputs | Current - Output | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Voltage - Input (Max) [Max] | Synchronous Rectifier | Supplier Device Package | Output Type | Function | Output Configuration | Outputs and Type | Outputs and Type | Supplied Contents | Voltage - Output | Voltage - Input [Min] | Voltage - Input [Max] | Regulator Topology | Utilized IC / Part | Board Type | Main Purpose |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 2.5 V | 2.25 MHz | 0.85 V | Buck | 5.5 V | 1 | 600 mA | 85 °C | -40 °C | Surface Mount | 5.5 V | 6-WSON (2x2) | Adjustable | Step-Down | Positive | |||||||||||
Texas Instruments | 2.5 V | 2.25 MHz | 0.85 V | Buck | 5.5 V | 1 | 600 mA | 85 °C | -40 °C | Surface Mount | 5.5 V | 6-WSON (2x2) | Adjustable | Step-Down | Positive | |||||||||||

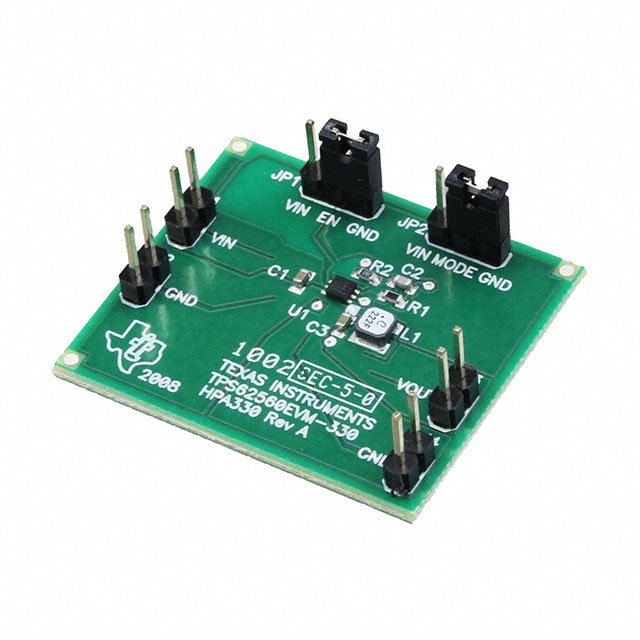

 Texas Instruments | 2.25 MHz | 600 mA | Non-Isolated | 1 | Board(s) | 1.8 V | 2.5 V | 5.5 V | Buck | TPS62560 | Fully Populated | DC/DC Step Down | ||||||||||||||
Texas Instruments | 2.5 V | 2.25 MHz | 0.85 V | Buck | 5.5 V | 1 | 600 mA | 85 °C | -40 °C | Surface Mount | 5.5 V | 6-WSON (2x2) | Adjustable | Step-Down | Positive |
