T4140L Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

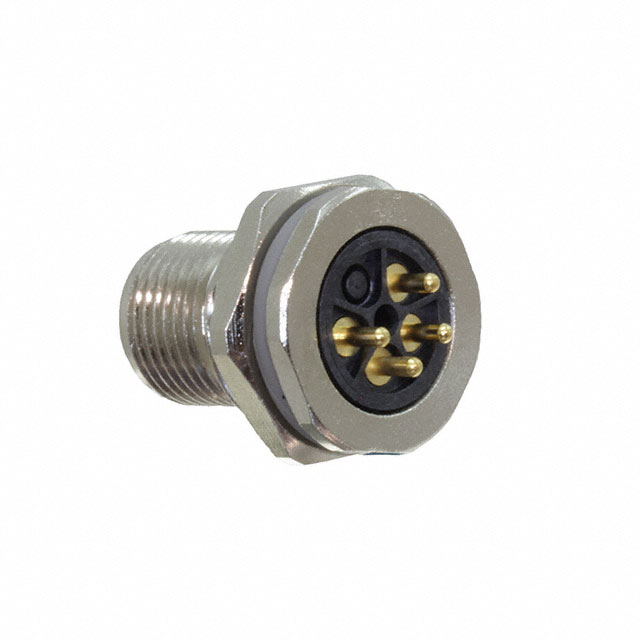

CIRCULAR METRIC CONNECTORS M12,REAR MOUNT,MALE L,3P+PE,SOLDER PCB
| Part | Applications | Contact Material | Insert Material | Fastening Type | Primary Material | Number of Positions | Voltage Rating | Termination | Color | Shell Finish | Current Rating (Amps) | Orientation | Contact Finish - Mating | Material Flammability Rating | Shell Material | Shielding | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Shell Size - Insert | Mounting Type | Mounting Feature | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Automation Control Industrial Lighting | Copper Alloy | Liquid Crystal Polymer (LCP) | Threaded | Metal | 4 | 63 V | Solder | Silver | Nickel | 16 A | L | Gold | UL94 V-0 | Copper Alloy | Unshielded | Plug Male Pins | 85 °C | -40 C | M12-4 | Panel Mount Through Hole | Bulkhead - Front Side Nut | IP67 - Dust Tight Waterproof |
