19360161 Series
Manufacturer: HARTING
Beta
⌘K
16B EX HOOD SIDE ENTRY, DOUBLE LEVER, LOW CONSTRUCTION, M25 (IECEX INTRINSICALLY SAFE - IEC EN 60079)
| Part | Housing Finish | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Style | Lock Location | Connector Type | Housing Color | Thread Size | Size | Housing Material | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Powder Coated | -20 ░C | 40 °C | IP65 - Dust Tight Water Resistant | Side Entry | Locking Clip (2) on Base Bottom | Hood | Blue | M25 | 16 B | Zinc Die Cast | ||||||

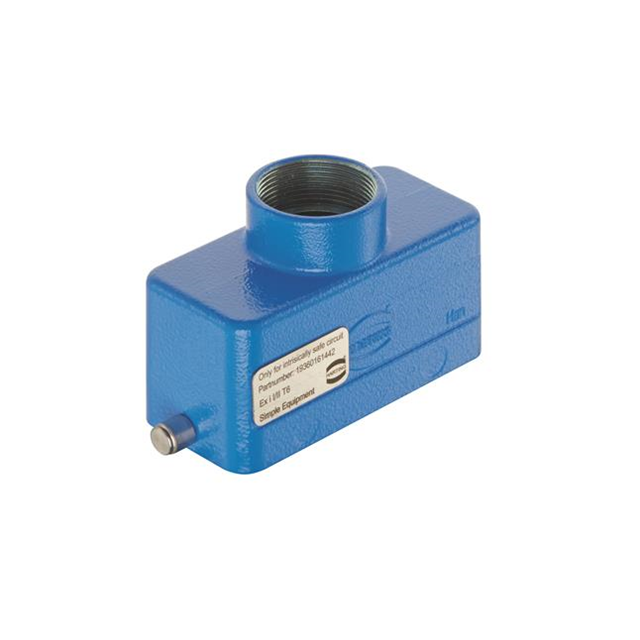

 HARTING | Powder Coated | -20 ░C | 40 °C | IP65 - Dust Tight Water Resistant | Top Entry | Locking Clip (1) on Base Bottom | Hood | Blue | M32 | 16 B | Zinc Die Cast | 93.5 mm | 1.772 in | 3.681 in | 43 mm | 45 mm | 1.693 " |
