SSI-LXH9 Series

Manufacturer: Lumex Opto/Components Inc.

Catalog

LED 5MM GREEN 6"LDS REAR PANELMT

Part	Viewing Angle	Lens Style	Current	Panel Cutout Shape	Wavelength - Peak	Lens Size	Lens Size	Type	Lamp Color	Lens Transparency	Voltage	Lens Color	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Millicandela Rating	Current	Termination Style	Termination Style	Termination Style	Panel Cutout Dimensions	Panel Cutout Dimensions	Ratings

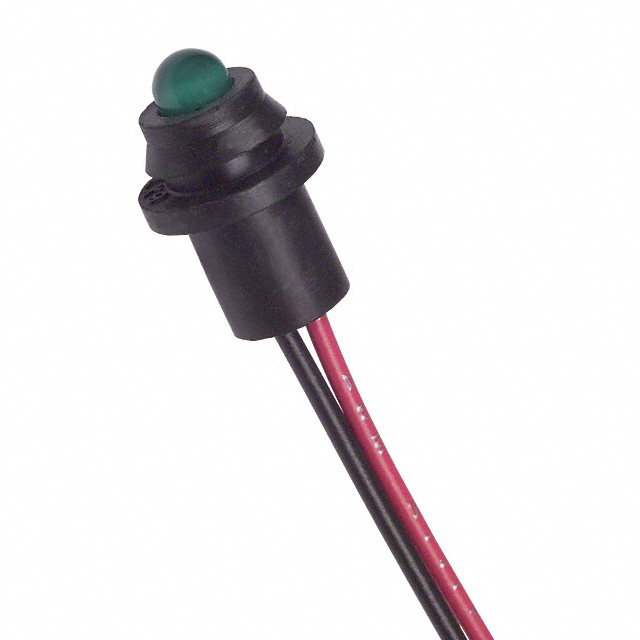

Lumex Opto/Components Inc. SSI-LXH9GD-150	60 °	Round with Domed Top	25 mA	Round	565 nm	5 mm	T-1 3/4	LED	Green	Diffused	2.2 V	Green	8.38 mm	0.33 in	30 mcd
Lumex Opto/Components Inc. SSI-LXH9HGW-150	60 °	Round with Domed Top		Round	565 nm 700 nm	5 mm	T-1 3/4	LED	Green Red	Diffused	2 V 2.2 V	White	8.38 mm	0.33 in	5 mcd 25 mcd	25mA Green 25mA Red
Lumex Opto/Components Inc. SSI-LXH9SRD	60 °	Round with Domed Top	30 mA	Round	660 nm	5 mm	T-1 3/4	LED	Red	Diffused	1.8 V	Red	8.38 mm	0.33 in	80 mcd
Lumex Opto/Components Inc. SSI-LXH9GD28V-150	60 °	Round with Domed Top	14 mA	Round	565 nm	5 mm	T-1 3/4	LED	Green	Diffused	28 V	Green	8.38 mm	0.33 in	20 mcd
Lumex Opto/Components Inc. SSI-LXH9SRD-150	60 °	Round with Domed Top	30 mA	Round	660 nm	5 mm	T-1 3/4	LED	Red	Diffused	1.7 V	Red	8.38 mm	0.33 in	80 mcd
Lumex Opto/Components Inc. SSI-LXH9YD-150	60 °	Round with Domed Top	30 mA	Round	585 nm	5 mm	T-1 3/4	LED	Yellow	Diffused	2.1 V	Yellow	8.38 mm	0.33 in	30 mcd

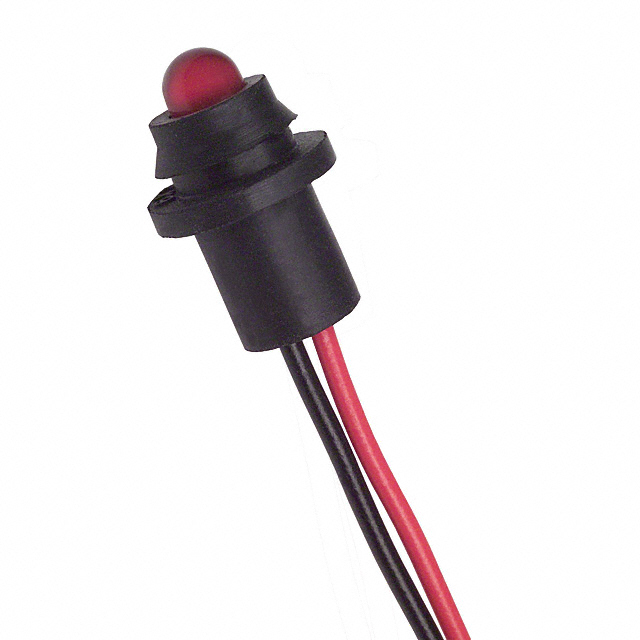

Lumex Opto/Components Inc. SSI-LXH9ID-150	60 °	Round with Domed Top	20 mA	Round	635 nm	5 mm	T-1 3/4	LED	Red	Diffused	2 V	Red	8.38 mm	0.33 in	40 mcd
Lumex Opto/Components Inc. SSI-LXH9SRD-610	60 °	Round with Domed Top	20 mA	Round	660 nm	5 mm	T-1 3/4	LED	Red	Diffused	1.7 V	Red	8.38 mm	0.33 in	30 mcd		Wire Leads	24 in	609.6 mm
Lumex Opto/Components Inc. SSI-LXH9SID-150	60 °	Round with Domed Top	30 mA	Round	636 nm	5 mm	T-1 3/4	LED	Red	Diffused	2 V	Red			100 mcd					8.26 mm	0.33 in	DC
