AIMB-501 Series

Catalog

INDUSTRIAL MOTHERBOARDS MICROATX WITH VGA/(DVI)/10COM/10USB/1 L

Part	Form Factor	Video Outputs	Cooling Type	RS-232 (422, 485) [custom]	RS-232 (422, 485) [custom]	RS-232 (422, 485) [custom]	Core Processor	Operating Temperature [Max]	Speed [Max]	Speed [Min]	Ethernet	USB	RAM Capacity/Installed	Expansion Site/Bus	Number of Cores	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Storage Interface	Digital I/O Lines	RS-232 (422, 485) [custom]
Advantech Corporation AIMB-501VG-KSA1E	Micro-ATX (without Processor)	CRT DVI LVDS VGA	Heat Sink	10	10	10	Intel Celeron Intel Core i3 Intel Core i5 Intel Core i7 Intel Pentium	60 °C	3.4 GHz	2.5 GHz	10 Mbps 100 Mbps 1000 Mbps	USB 2.0 (10)	0 GB 16 GB	PCI PCIe	2 4	9.6 in	9.6 in	243.84 mm	243.84 mm	SATA 2.0 (4)	8
Advantech Corporation AIMB-501VG-KSA1E	Micro-ATX (without Processor)	CRT DVI LVDS VGA	Heat Sink	10	10	10	Intel Celeron Intel Core i3 Intel Core i5 Intel Core i7 Intel Pentium	60 °C	3.4 GHz	2.5 GHz	10 Mbps 100 Mbps 1000 Mbps	USB 2.0 (10)	0 GB 16 GB	PCI PCIe	2 4	9.6 in	9.6 in	243.84 mm	243.84 mm	SATA 2.0 (4)	8
Advantech Corporation AIMB-501L-KSA1E	Micro-ATX (without Processor)	CRT DVI LVDS VGA	Heat Sink				Intel Celeron Intel Core i3 Intel Core i5 Intel Core i7 Intel Pentium	60 °C	3.4 GHz	2.5 GHz	10 Mbps 100 Mbps 1000 Mbps	USB 2.0 (10)	0 GB 16 GB	PCI PCIe	2 4	9.6 in	9.6 in	243.84 mm	243.84 mm	SATA 2.0 (4)	8	2

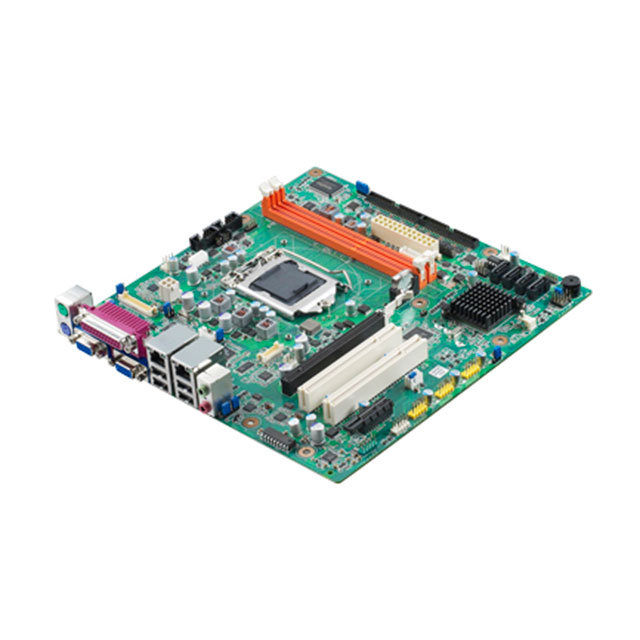

Advantech Corporation AIMB-501G2-KSA1E	Micro-ATX (without Processor)	CRT DVI LVDS VGA	Heat Sink	10	10	10	Intel Celeron Intel Core i3 Intel Core i5 Intel Core i7 Intel Pentium	60 °C	3.4 GHz	2.5 GHz	10 Mbps 100 Mbps 1000 Mbps	USB 2.0 (10)	0 GB 16 GB	PCI PCIe	2 4	9.6 in	9.6 in	243.84 mm	243.84 mm	SATA 2.0 (4)	8
Advantech Corporation AIMB-501L-KSA1E	Micro-ATX (without Processor)	CRT DVI LVDS VGA	Heat Sink				Intel Celeron Intel Core i3 Intel Core i5 Intel Core i7 Intel Pentium	60 °C	3.4 GHz	2.5 GHz	10 Mbps 100 Mbps 1000 Mbps	USB 2.0 (10)	0 GB 16 GB	PCI PCIe	2 4	9.6 in	9.6 in	243.84 mm	243.84 mm	SATA 2.0 (4)	8	2
Advantech Corporation AIMB-501G2-KSA2E	Micro-ATX (without Processor)	CRT DVI LVDS VGA	Heat Sink	10	10	10	Intel Celeron Intel Core i3 Intel Core i5 Intel Core i7 Intel Pentium	60 °C	3.4 GHz	2.5 GHz	10 Mbps 100 Mbps 1000 Mbps	USB 2.0 (2) USB 3.0 (8)	0 GB 16 GB	PCI PCIe	2 4	9.6 in	9.6 in	243.84 mm	243.84 mm	SATA 2.0 (4)	8
Advantech Corporation AIMB-501G2-KSA1E	Micro-ATX (without Processor)	CRT DVI LVDS VGA	Heat Sink	10	10	10	Intel Celeron Intel Core i3 Intel Core i5 Intel Core i7 Intel Pentium	60 °C	3.4 GHz	2.5 GHz	10 Mbps 100 Mbps 1000 Mbps	USB 2.0 (10)	0 GB 16 GB	PCI PCIe	2 4	9.6 in	9.6 in	243.84 mm	243.84 mm	SATA 2.0 (4)	8
Advantech Corporation AIMB-501G2-KSA2E	Micro-ATX (without Processor)	CRT DVI LVDS VGA	Heat Sink	10	10	10	Intel Celeron Intel Core i3 Intel Core i5 Intel Core i7 Intel Pentium	60 °C	3.4 GHz	2.5 GHz	10 Mbps 100 Mbps 1000 Mbps	USB 2.0 (2) USB 3.0 (8)	0 GB 16 GB	PCI PCIe	2 4	9.6 in	9.6 in	243.84 mm	243.84 mm	SATA 2.0 (4)	8
