HSMF-C169 Series
Manufacturer: Broadcom Limited
Beta
⌘K

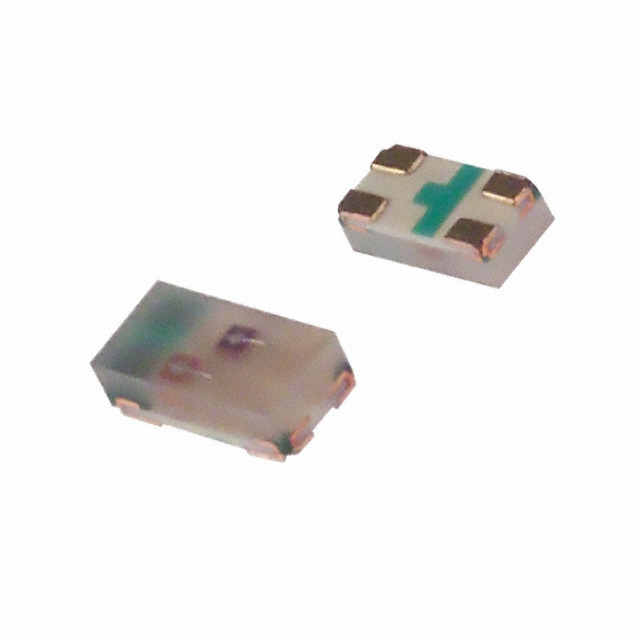

LED AMBER/BLUE DIFFUSED 0603 SMD
| Part | Mounting Type | Lens Color | Millicandela Rating | Viewing Angle | Size / Dimension [x] | Size / Dimension [y] | Current - Test | Wavelength - Peak | Lens Size [y] | Lens Size [x] | Voltage - Forward (Vf) (Typ) [custom] | Voltage - Forward (Vf) (Typ) [custom] | Color | Wavelength - Dominant | Package / Case | Package / Case | Height (Max) [z] | Configuration | Lens Transparency | Lens Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | Surface Mount | White | 10 mcd 90 mcd | 120 ° | 1.6 mm | 0.8 mm | 10 mA 20 mA | 468 nm 595 nm | 0.8 mm | 1.6 mm | 3.4 V | 1.9 V | Amber Blue | 470 nm 592 nm | 1608 Metric | 0603 | 0.5 mm | Independent | Diffused | Rectangle with Flat Top |
