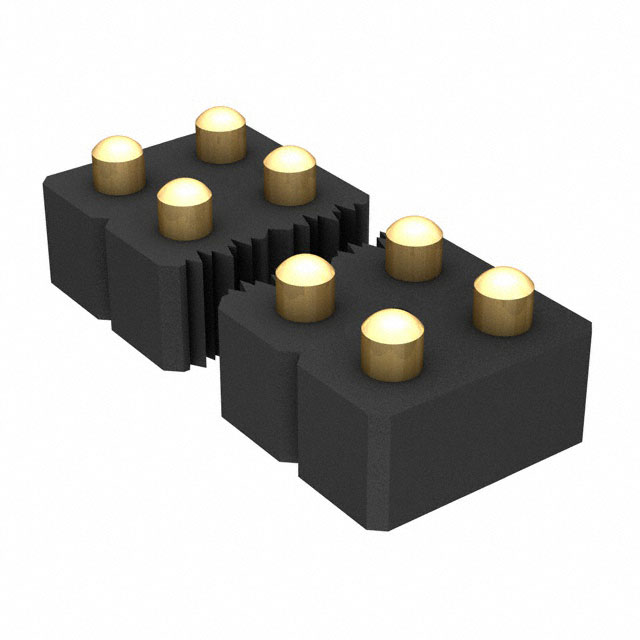

406-43 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN RCPT 13POS 0.1 GOLD SMD

Part	Contact Material	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Mounting Type	Fastening Type	Current Rating (Amps)	Number of Positions Loaded	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Contact Type	Contact Finish - Post	Termination	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Connector Type
Mill-Max Manufacturing Corp. 406-43-213-30-068000	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Circular	Surface Mount	Push-Pull	3 A	All	2	-55 C	125 °C	13	UL94 V-0	0.76 Ám	30 Áin	0.1 "	2.54 mm	Female Socket	Tin	Solder	Black	0.1 in	2.54 mm	Gold	Receptacle
Mill-Max Manufacturing Corp. 406-43-209-30-068000	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Circular	Surface Mount	Push-Pull	3 A	All	2	-55 C	125 °C	9	UL94 V-0	0.76 Ám	30 Áin	0.1 "	2.54 mm	Female Socket	Tin	Solder	Black	0.1 in	2.54 mm	Gold	Receptacle
Mill-Max Manufacturing Corp. 406-43-216-30-068000	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Circular	Surface Mount	Push-Pull	3 A	All	2	-55 C	125 °C	16	UL94 V-0	0.76 Ám	30 Áin	0.1 "	2.54 mm	Female Socket	Tin	Solder	Black	0.1 in	2.54 mm	Gold	Receptacle
Mill-Max Manufacturing Corp. 406-43-205-30-068000	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Circular	Surface Mount	Push-Pull	3 A	All	2	-55 C	125 °C	5	UL94 V-0	0.76 Ám	30 Áin	0.1 "	2.54 mm	Female Socket	Tin	Solder	Black	0.1 in	2.54 mm	Gold	Receptacle
Mill-Max Manufacturing Corp. 406-43-215-30-068000	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Circular	Surface Mount	Push-Pull	3 A	All	2	-55 C	125 °C	15	UL94 V-0	0.76 Ám	30 Áin	0.1 "	2.54 mm	Female Socket	Tin	Solder	Black	0.1 in	2.54 mm	Gold	Receptacle
Mill-Max Manufacturing Corp. 406-43-212-30-068000	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Circular	Surface Mount	Push-Pull	3 A	All	2	-55 C	125 °C	12	UL94 V-0	0.76 Ám	30 Áin	0.1 "	2.54 mm	Female Socket	Tin	Solder	Black	0.1 in	2.54 mm	Gold	Receptacle
Mill-Max Manufacturing Corp. 406-43-220-30-068001	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Circular	Surface Mount	Push-Pull	3 A	All	2	-55 C	125 °C	20	UL94 V-0	0.76 Ám	30 Áin	0.1 "	2.54 mm	Female Socket	Tin	Solder	Black	0.1 in	2.54 mm	Gold	Receptacle
Mill-Max Manufacturing Corp. 406-43-219-30-068000	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Circular	Surface Mount	Push-Pull	3 A	All	2	-55 C	125 °C	19	UL94 V-0	0.76 Ám	30 Áin	0.1 "	2.54 mm	Female Socket	Tin	Solder	Black	0.1 in	2.54 mm	Gold	Receptacle
Mill-Max Manufacturing Corp. 406-43-207-30-068000	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Circular	Surface Mount	Push-Pull	3 A	All	2	-55 C	125 °C	7	UL94 V-0	0.76 Ám	30 Áin	0.1 "	2.54 mm	Female Socket	Tin	Solder	Black	0.1 in	2.54 mm	Gold	Receptacle
Mill-Max Manufacturing Corp. 406-43-204-30-068001	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Circular	Surface Mount	Push-Pull	3 A	All	2	-55 C	125 °C	4	UL94 V-0	0.76 Ám	30 Áin	0.1 "	2.54 mm	Female Socket	Tin	Solder	Black	0.1 in	2.54 mm	Gold	Receptacle
