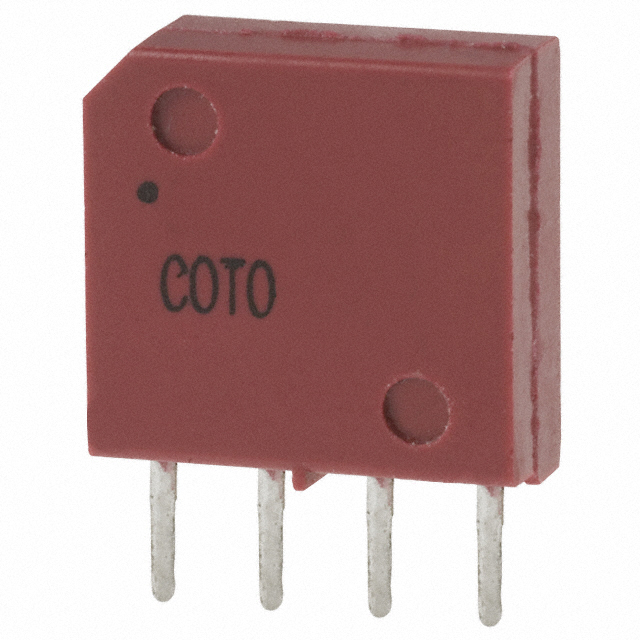

9012 Series

Catalog

RELAY REED SPST 500MA 5V

Part	Coil Resistance	Switching Voltage [Max]	Termination Style	Operate Time	Mounting Type	Features	Coil Type	Coil Current	Must Release Voltage	Must Operate Voltage	Contact Form	Coil Voltage	Release Time	Contact Rating (Current)	Operating Temperature [Max]	Operating Temperature [Min]
COTO TECHNOLOGY 9012-05-10	500 Ohms	200 VDC 200 VAC	PC Pin	0.35 ms	Through Hole	EMI Shielded	Non Latching	10 mA	0.4 VDC	3.75 VDC	SPST-NO (1 Form A)	5 VDC	0.1 ms	0.5 A	85 °C	-20 ░C
COTO TECHNOLOGY 9012-12-10	750 Ohms	200 VDC 200 VAC	PC Pin	0.35 ms	Through Hole	EMI Shielded	Non Latching	16 mA	1 VDC	9 VDC	SPST-NO (1 Form A)	12 VDC	0.1 ms	0.5 A	85 °C	-20 ░C
COTO TECHNOLOGY 9012-05-11	500 Ohms	200 VDC 200 VAC	PC Pin	0.35 ms	Through Hole	Diode EMI Shielded	Non Latching	10 mA	0.4 VDC	3.75 VDC	SPST-NO (1 Form A)	5 VDC	0.1 ms	0.5 A	85 °C	-20 ░C
COTO TECHNOLOGY 9012-12-11	750 Ohms	200 VDC 200 VAC	PC Pin	0.35 ms	Through Hole	Diode EMI Shielded	Non Latching	16 mA	1 VDC	9 VDC	SPST-NO (1 Form A)	12 VDC	0.1 ms	0.5 A	85 °C	-20 ░C
