TA5FS1 Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

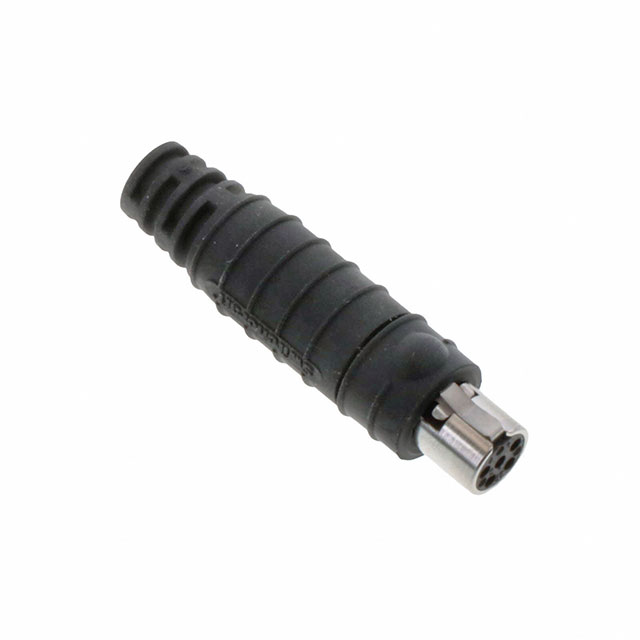

SEALED MINI-XLR, CABLE END, 5-PIN FEMALE, 0.100" [2.5MM] - 0.120" [3.0MM] CABLE SIZE
| Part | Orientation | Fastening Type | Insert Material | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Number of Positions | Backshell Material, Plating | Current Rating (Amps) | Ingress Protection | Mounting Type | Shell Size - Insert | Applications | Connector Type | Features | Contact Finish - Mating | Shell Material | Shell Finish | Primary Material | Contact Material | Color | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Keyed | Latch Lock | Thermoplastic | 2.54 mm | 3.05 mm | 0.1 " | 0.12 in | 5 | Thermoplastic Thermoplastic Rubber | 4 A | IP65 IP66 | Free Hanging (In-Line) | Mini XLR | Audio Medical | Plug Female Sockets | Backshell Cable Clamp Strain Relief | Silver | Copper Alloy | Nickel | Metal | Copper Alloy | Black Silver | 125 VAC |
SWITCHCRAFT/CONXALL | Keyed | Latch Lock | Thermoplastic | 3.56 mm | 4.06 mm | 0.14 in | 0.16 in | 5 | Thermoplastic Thermoplastic Rubber | 4 A | IP65 IP66 | Free Hanging (In-Line) | Mini XLR | Audio Medical | Plug Female Sockets | Backshell Cable Clamp Strain Relief | Silver | Copper Alloy | Nickel | Metal | Copper Alloy | Black Silver | 125 VAC |
