3020-08 Series

Manufacturer: CNC Tech

Catalog

CONN SHROUDED HEADER HDR 8 POS 2.54MM SOLDER ST SMD

Part	Contact Finish Thickness - Post	Number of Positions Loaded	Material Flammability Rating	Connector Type	Insulation Color	Features	Shrouding	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Shape	Style	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish - Post	Number of Rows [custom]	Contact Type	Insulation Material	Insulation Height	Insulation Height	Fastening Type	Contact Material	Voltage Rating	Contact Length - Post	Contact Length - Post	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height

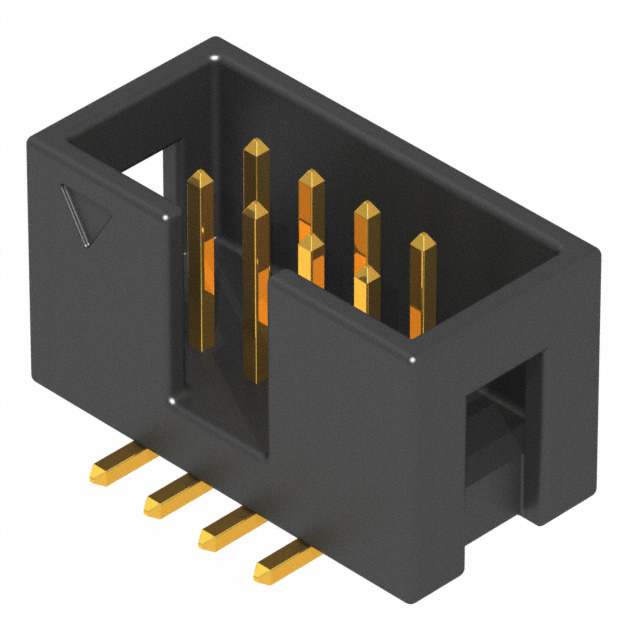

CNC Tech 3020-08-0300-00	Flash	All	UL94 V-0	Header	Black	Keying Slot	Shrouded - 4 Wall	8	0.1 in	2.54 mm	Gold	3 A	0.1 "	2.54 mm	Surface Mount	Square	Board to Cable/Wire	Solder	-40 C	105 ░C	Flash	Gold	2	Male Pin	Nylon 9T Polyamide (PA9T)	0.354 in	9 mm	Push-Pull	Brass
CNC Tech 3020-08-0100-00	Flash	All	UL94 V-0	Header	Black	Keying Slot	Shrouded - 4 Wall	8	0.1 in	2.54 mm	Gold	3 A	0.1 "	2.54 mm	Through Hole	Square	Board to Cable/Wire	Solder	-40 C	105 ░C	Flash	Gold	2	Male Pin	Nylon 9T Polyamide (PA9T)	0.354 in	9 mm	Push-Pull	Brass	250 VAC	0.118 in	3 mm
CNC Tech 3020-08-0200-00	Flash	All	UL94 V-0	Header	Black	Keying Slot	Shrouded - 4 Wall	8	0.1 in	2.54 mm	Gold	3 A	0.1 "	2.54 mm	Right Angle Through Hole	Square	Board to Cable/Wire	Solder	-40 C	105 ░C	Flash	Gold	2	Male Pin	Nylon 9T Polyamide (PA9T)			Push-Pull	Brass	250 VAC	0.118 in	3 mm	8.8 mm	0.346 in
CNC Tech 3020-08-0100-02		All	UL94 V-0	Header			Shrouded - 4 Wall	8	0.1 in	2.54 mm	Gold	3 A	0.1 "	2.54 mm	Right Angle Through Hole	Square	Board to Cable/Wire	Solder	-40 C	105 ░C			2	Male Pin	Nylon 6T Polyamide (PA6T)		0.35 in	Push-Pull	Brass		0.118 in	3 mm			0.76 Ám	30 Áin	8.89 mm
